The urethane functional group is found almost exclusively in polymer form, known as

. These ubiquitous polymers make urethanes an economically important functional group. Urethanes are made using diisocyanates. How to identify diisocyanates, and distinguishing among different urethane types using infrared spectroscopy, are explained in this installment of the column.


		The urethane functional group is found almost exclusively in polymer form, known as

. These ubiquitous polymers are used as wood finishes and make up polyurethane foam, also known as foam rubber. The structural framework of a urethane is shown in Figure 1.

	Note that this functional group contains a carbonyl bond with an oxygen atom and nitrogen atom attached to it. The latter is why urethanes are included in this series on organic nitrogen compounds. On the left-hand side of Figure 1, the urethane looks like an ester because of the O-C=O linkage (1), but on the right-hand side of Figure 1, the N-C=O linkage looks like an amide (2,3). As we will see, the infrared spectra of urethanes combine features of both esters and amides.

 if one carbon and two hydrogens are attached to the nitrogen atom, as

 if two carbon atoms and one hydrogen atom are attached to the nitrogen, and as

 if three carbon atoms are attached to the nitrogen. Figure 1 shows the structure of a secondary urethane. Note that it contains two C-N bonds and one N-H bond.

	Polyurethanes are made by reacting alcohols with a functional group called a

. The structural framework of a diisocyanate is seen in Figure 2.

	Note that a diisocyanate contains two isocyanate -N=C=O linkages, hence the “di” in the name. A molecule with one -N=C=O unit would simply be called an

. When urethanes and alcohols are polymerized to make polyurethanes, there can be isocyanate end groups that occasionally appear in the spectra
	of polyurethanes.

	The infrared spectrum of a diisocyanate is shown in Figure 3.

	Note that the spectrum is dominated by the peak labeled A at 2277 cm

 (assume all peak positions are in wavenumbers going forward, even if not labeled as such). This peak is due to the asymmetric stretch of the -N=C=O group, which normally falls from 2280 to 2240. This peak is the perfect example of a group wavenumber, because it is intense and shows up in a part of the spectrum where very few other functional groups absorb (5). Throughout the over 30 installments of this column, you may have noticed that most of the time we focus our attention from 3500 to 2800, and from 2000 to 400. That is because very few functional groups absorb between 2800 and 2000. The only other infrared peak we have seen that absorbs near diisocyanates is the C≡C stretch of disubstituted alkynes, which fall from 2260 to 2190 (6). These two functional groups are easily distinguished, because the diisocyanate -N=C=O asymmetric stretching peak is broader and stronger than a typical C≡C stretch. This is because of the high polarity of the -N=C=O group compared to that of an alkyne triple bond (7). The strength and unusual position of the -N=C=O stretching peak are why it sometimes appears in polyurethane spectra, even though it is in low concentration.

	Based on the structural framework of urethanes shown in Figure 1, we can predict to a point what urethane spectra will look like. Primary and secondary urethanes contain N-H bonds, and so have N-H stretches that are medium in width and intensity, and fall in the same wavenumber range as the N-H stretching peaks of amides and amines (2–4). The C=O bond in urethanes means there should be a strong C=O stretching peak (8) from around 1700, and the C-O bond means there should be a strong peak between 1300 and 1000 (9).

	The infrared spectra of primary urethanes behave as expected. Their asymmetric and symmetric NH

 stretches are found from 3450 to 3400 and 3240 to 3200, respectively. Primary urethanes have two NH stretching peaks, as do primary amines and amides (2–4), because, in all these cases, the primary nitrogen contains two N-H bonds, hence two N-H stretching peaks (3). The carbonyl stretch of primary urethanes falls at 1740 to 1730, and there is an NH

 scissors (in-plane bending) peak from 1630 to 1610.

	Unfortunately, the C=O stretching peak of primary urethanes falls in the same region as other carbonyl-containing functional groups, such as ketones, aldehydes, esters, and carboxylic acids (8,9). However, these functional groups do not contain nitrogen, hence there are no N-H stretching peaks, making distinguishing primary urethanes from these compounds easy. But primary amides have two NH

stretches, and a C=O stretch (3), as do primary urethanes. Fortunately, the primary urethane C=O stretch is at 1740 to 1730, whereas, for primary amides, it falls from 1680 to 1630 (10). This difference in C=O stretching peak position means primary amides and urethanes can be distinguished from each other. The diagnostic group wavenumber pattern, then, for primary urethanes is two NH stretching peaks, a C=O peak around 1730, and an NH

	The infrared spectrum of a secondary urethane, a “polyurethane/polyether foam,” better known as foam rubber, is seen in Figure 4.

	Because this polymer is a secondary urethane, as seen in the figure, it has a single N-H bond, and, hence, a secondary nitrogen. The spectral signature of a secondary nitrogen, as we saw for secondary amides and amines (2–4), is a single N-H stretching peak. In Figure 4, this peak is labeled A at 3326. In general, for secondary urethanes, this peak falls from 3340 to 3250. Note that the NH stretching peak in Figure 4 is of medium intensity and height, consistent with many of the other NH stretches we have seen (11).

	The carbonyl stretch in Figure 4 labeled B is split, with peaks at 1720 and 1705. In the past, a double carbonyl stretch like this indicated the presence of two separate carbonyl bonds in a functional group, such as for acid anhydrides (12) and imides (13). However, this is clearly not the case here; urethanes do not contain two carbonyl bonds. The cause of this split carbonyl peak is that some urethane C=O groups engage in hydrogen bonding, whereas others don’t. The 1720 peak is from non-hydrogen bonded, or “unassociated,” carbonyls, whereas the 1705 peak is from the hydrogen bonded, or “associated,” carbonyl groups (10). We have already studied the effects of hydrogen bonding on peaks, such as for alcohols (9). The tendency for peaks upon hydrogen bonding is to broaden and move to lower wavenumbers, as we have seen here.

	The peak labeled C in Figure 4 at 1531 is the in-plane N-H bend of a secondary urethane. In general, this peak falls from 1540 to 1520. Secondary amides also have a peak from the same vibration in the same place (3). However, secondary amide C=O stretches fall from 1680 to 1630, whereas, for secondary urethanes, this peak falls from 1740 to 1705, higher than in secondary amides, allowing us to distinguish between secondary urethanes and amides.

	The diagnostic group wavenumber pattern then for secondary urethanes is a single N-H stretch, a carbonyl stretch from 1740 to 1705, and an N-H in-plane bend from 1540 to 1520. Primary and secondary urethanes can be distinguished, because the former has two NH stretching peaks, whereas the latter has one.

	A further examination of Figure 1 shows that urethanes have a C-O bond, and we have learned in general that C-O stretching peaks are intense and fall from 1300 to 1000 (9). The peak labeled D at 1222 in Figure 4 is a urethane C-O stretch.  The C-O stretch for all urethanes falls from 1250 to 1200 (10). There is a large peak at ~1050 in Figure 4 that is not labeled. It is from the C-O stretch of the ether groups (14)in this particular polyurethane/polyether foam.

	Tertiary urethanes contain no NH bonds, hence they have no NH stretching or bending peaks. Their only useful group wavenumber is their C=O stretch from 1690 to 1680 (10), which also overlaps with amides. Thus, tertiary urethanes, like tertiary amines and amides (2–4) are a functional group that is hard to distinguish by infrared
	spectroscopy.

	A summary of the group wavenumbers discussed in this column is seen in Table I.

	Urethanes are often made into polyurethanes by reaction with diisocyanates. Diisocyanates have a strong and uniquely positioned -N=C=O asymmetric stretching peak from 2280 to 2240. Like amides and amines, urethanes can be classified as primary, secondary, and tertiary, based on the number of C-N and N-H bonds. Primary urethanes exhibit two NH stretches, a C=O stretch, and an NH

 scissoring vibration. Secondary urethanes have one NH stretch, a C=O stretch, and an NH in plane bend. Tertiary urethanes are difficult to discern by infrared spectroscopy.

Infrared and Raman Characteristic Group Frequencies

(Wiley, New York, New York, 3rd Ed., 2001).

Solution to the Last Infrared Spectral Interpretation Challenge

	The spectrum from the last interpretation challenge is seen in Figure i.

	As we work our way from left to right across this spectrum, the first peak we encounter is at 3043. We have learned that peaks between 3100 and 3000 are typically the C-H stretch of unsaturated carbons (15). However, this peak by itself cannot help us distinguish between the two most common unsaturated carbon types, alkenes or benzene rings. Alkenes have a C=C stretching peak from 1680 to 1630 (15), but, given that there are no peaks in this region in this spectrum, we can rule out an alkene. Benzene rings have ring mode peaks that are sharp, and appear from 1630 to 1400 (16). The sharp peak at 1500 can be assigned as a ring mode, indicating we have a benzene ring present.

	The most notable feature in Figure i is the pair of peaks at 1777 and 1726. Given their position and intensity, they are C=O stretching vibrations (8). The fact that there are two carbonyl stretching peaks indicates there may be a functional group present with two C=O bonds in it. Acid anhydrides are a possibility here, because we have seen that their spectra possess a double carbonyl stretching peak (12). However, the acid anhydride functional group also contains a C-O bond, and, hence, should have a strong C-O stretching peak between 1060 and 1035. There are no strong peaks in this region, meaning this is not an acid anhydride.

	We saw last time (13) that cyclic imides have a double carbonyl stretch with peaks at 1790 to 1735 and 1750 to 1680. The spectrum in Figure i has peaks at 1777 and 1726, consistent with there being a cyclic imide present.

	Now, some imides have an N-H bond, and, hence, an NH stretching peak at 3200±50 (13). The absence of an NH stretch here means there is not an NH bond, but, more than likely, a C-N bond in the imide functional group. Note that the caption in Figure i says the sample is a fiber. This means the sample is a polymer, and we probably have a polyimide where the repeat units connect through the nitrogen in the imide functional group, explaining the lack of an NH stretch.

	I am afraid this is as far as we can push this analysis. What we know is that we have a cyclic aromatic polyimide. The most common material fitting this description has the trade name Kapton, or the chemical name poly(4,4’-oxydiphenylene-pyromellitimide). Given this name, you can see why we will simply call this material Kapton. The chemical structure of Kapton is seen in Figure ii.

	Note there is also an aromatic ether in this structure, hence the C-O stretch in Figure i at 1241 (14).

is the founder and CEO of Big Sur Scientific, a maker of portable mid-infrared cannabis analyzers. He has over 30 years experience as an industrial infrared spectroscopist, has published numerous peer reviewed papers, and has written three books on spectroscopy. As a trainer, he has helped thousands of people around the world improve their infrared analyses. In addition to writing for

 Dr. Smith writes a regular column for its sister publication

and sits on its editorial board. He earned his PhD in physical chemistry from Dartmouth College. He can be reached at: SpectroscopyEdit@MMHGroup.com â

Articles

IR Spectral Interpretation Workshop

Here we delve into the interpretation of another organic nitrogen compound, known as polyurethane, a ubiquitous polymer used for wood finishes and foam rubber.

Organic Nitrogen Compounds IX: Urethanes and Diisocyanates

Spectroscopy May 2020

Click the title above to open the Spectroscopy May regular issue, Volume 35, Issue 5, in an interactive PDF format.

Vol 35 No 5 Spectroscopy May 2020 Regular Issue PDF

The most widely used commercial techniques for solid sample analysis include laser induced breakdown spectroscopy (LIBS), arc/spark optical emission spectrometry (OES), X-ray fluorescence (XRF), and laser ablation coupled with inductively coupled plasma−mass spectrometry (LA-ICP-MS). Each technique has known limitations, including matrix suppression, diffusion and transport effects, spectral overlaps, and varying degrees of calibration challenges. Also, many laboratories determining trace impurities in solid materials are unable to reach the required limits of quantitation by direct analysis, so they must digest the samples and use a technique like ICP-MS. Recent advances in laser ablation laser ionization (LALI) have reduced many drawbacks that plague other techniques, simplifying solid sample analysis. This column examines the LALI technique coupled with time-of-flight (TOF) mass spectrometry and compares application figures of merit with other, more traditional approaches of analyzing solid materials.

	Laser ablation laser ionization, coupled with time-of-flight (TOF) mass spectrometry (LALI-TOF-MS), is a brand new development that offers virtually the entire periodic table of the elements simultaneously at MS detection limits. LALI-TOF-MS has applicability to all trace element applications that require direct analysis of solid samples. LALI avoids sample digestion procedures and bypasses limitations such as matrix suppression effects, polyatomic spectral interferences, and signal instability that are exhibited in ICP-MS and other solution techniques.

	At the heart of LALI-TOF-MS are two lasers; a sample chamber with ion source that is already under vacuum, and a time-TOF mass spectrometer. The dual-laser technology extracts and subsequently ionizes material in two discrete steps; first, ablation of the sample material, and then, ionization of the ablated material. The generated ions are then sampled into a TOF mass spectrometer for separation, identification, and quantification.

	Historically, LALI has been referred to by numerous acronyms in the literature, including

laser desorption laser post-ionization time-of-flight mass spectrometry

 (LD-LPI-TOF-MS) (6). Most of the research regarding LALI was purely academic and performed between the late 1980s and early 1990s. At the time, cost and electronic limitations prohibited commercialization of LALI technology and other techniques took center stage. However, recent advances in computing technology and miniaturized, high-powered, solid-state lasers make LALI much more commercially viable today. Let’s take a closer look at its fundamental principles.

	The first step of LALI uses a focused laser beam to ablate (or desorb) material from a solid sample surface. It utilizes a neodymium-doped yttrium aluminum garnet (Nd:YAG) laser with an adjustable laser wavelength. Depending on whether the application is characterizing atoms or molecules, the laser can be set to the fourth harmonic (266 nm) or fifth harmonic (213 nm) for ablation, or the fundamental 1064 nm wavelength for desorption. In a process exactly analogous to laser ionization mass spectrometry (LIMS) and laser induced breakdown spectroscopy (LIBS), the laser generates an initial set of ion or electron pairs from a temporal plasma, along with a neutral particle cloud that migrates in a direction that is normal to the sample surface.

	A short delay of <1 µs allows plasma extinction and the dispersion of plasma-generated ions before a second Nd:YAG laser at 266 nm is triggered for ionization. As shown in Figure 1, the ionization laser is aligned parallel to the sample surface, and its beam is focused inside the neutral particle cloud. The focused beam from the ionization laser has an energy density >10

, allowing for ionization of neutral particles via multiphoton ionization (MPI). MPI differs from resonant enhanced multiphoton ionization (REMPI), in that with MPI the laser is not tuned to a specific elemental or molecular frequency for ionization.

	By ionizing elements across a wide range of ionization energies, MPI serves as a highly efficient ion source and replaces the Ar plasma of ICP instrumentation. Once ionized, an ion funnel collects and focuses the ions in a low pressure (0.2–0.3 mbar) environment. After exiting the ion funnel, a quadrupole ion deflector (QID) turns the ions 90o and directs the ion beam through an Einzel lens stack and a quadrupole to further improve the beam shape. After the transfer quadrupole, the technology is equipped with a notch quadrupole filter. For applications that require high sensitivity, the notch filter increases dynamic range by selectively reducing the signal of up to four different ion masses (typically the most abundant matrix elements). Ions are then transferred to the reflectron TOF mass spectrometer that completes the mass analysis.

	To realize the real-world benefits of this technology, let’s examine the following application figures of merit compared to other solid sampling approaches: All data shown have been generated on the MassBox LALI-TOF-MS instrument
	(Exum Instruments).

	Detection limits for LALI-TOF-MS are on average approximately 100–500x lower than those of either XRF or LIBS. Typical detection limits for the majority of elements by LALI are in the region of 0.01 µg/g (10 ppb) for solids, compared to approximately 1–10 µg/g (1–10 ppm) for XRF and 10–50 ppm for LIBS. The inherent limitation of both XRF and LIBS is that they rely on the generation of X-ray- and plasma-induced excitation, and, as a result, use the measurement of photons for quantification, limiting their practical detection capability, as shown in Figure 2.

	LA-ICP-MS offers similar detection capability to LALI (and is slightly better for some elements) but suffers from two fundamental problems, thus limiting its suitability as a truly practical tool for a wide range of solid samples. The first major drawback of LA-ICP-MS is

, or the preferential sampling of analyte elements based on their physical size. As a result, the abundances of the ions detected after separation are not entirely representative of the composition of the original sample. Besides the ablation process itself, the transport of the aerosol particles from the ablation chamber at atmospheric pressure into the ICP are impacted by differences in gravitational settling effects between smaller and larger particles, together with vaporization, atomization, and ionization differences in the plasma (less efficient for larger particles). In addition, transportation of ions through the interface cones, into the ion optics, and into the mass separation device are also important contributors to these fractionation effects. As a result, LA-ICP-MS often struggles to ensure that the analyte ions being measured are truly representative of the analyte elements in the bulk material being sampled, meaning that matrix matching of standards with samples is absolutely critical (7). Furthermore, LA-ICP-MS requires two separate systems from different vendors; this can be challenging to the end user to create a fluid workflow. This leads to high costs of instrument acquisition, high consumable costs, and a non-trivial amount of time from analysis to quantification. Figure 2 shows color-contoured heat maps of detection limits for LALI-TOF-MS (top) compared to LA-ICP-MS, XRF, and LIBS (bottom). The darkest colors represent the lowest limits of detection and clearly show that LALI offers the best detection capability across the periodic table.

	In XRF, the sample is irradiated with a beam of high-energy X-rays. As the excited electrons in the atom fall back to a ground state, they emit secondary X-rays that are characteristic of those elements present in the sample. Its inherent weakness lies in the fact that because the generation of secondary X-rays is dependent on the analyte–matrix bond, matrix-matched standards are a critical requirement for reliable quantification. So, for applications that require multielement measurements across a variety of different matrices, this is a well-recognized limitation of the XRF technique. On the other hand, LIBS uses plasma-generated photons produced by a combination of excitation and ionization from the laser, which are significantly affected by the matrix elements. LALI, however, has more efficient ionization and significantly lower matrix effects, making quantification more straightforward. LALI’s strength over LIBS is that the source ionizes gas-phase particles within the neutral particle cloud, instead of relying on plasma generated ions during ablation. As a result, the LALI particles in the neutral cloud are significantly less variable across different matrices. Ionization of neutral cloud material also results in stoichiometric accuracy, enabling quantification of a variety of sample matrices without the need for matrix-matched standards.

	Another major advantage of the LALI design is that ionization occurs under vacuum in the sample chamber. It is a completely static system, held at high-vacuum (~10

 mbar) in the TOF, and a pressure gradient to ~10

 mbar in quadrupoles and the ion optics. The pressure in the LALI sample chamber is maintained at ~0.2–0.3 mbar with an inert helium cooling gas system. The low pressure of the ion source results in a significant improvement in sensitivity, because it greatly reduces losses associated with gas transport from atmospheric pressure to a vacuum system.

	The removal of the plasma source also has the advantage that thermal emission of contaminant ions from the cones or injector is eliminated, greatly improving the ability to determine many of the volatile elements at both low and high masses, including Na (mass 23) and Pb (masses 204, 206, 207, and 208). Additionally, without a plasma source or any carrier gas, LALI does not rely on components with dynamic fluctuations, thus leading to long-term signal stability without requiring regular instrument tuning and calibration. Figure 3 shows the long-term stability of a suite of trace elements in a NIST 610 standard reference glass over a period of 8 h, with the precision (% RSD) of multiple measurements. Note that each of the three sets of data points (morning, afternoon, and night) represents an average of 1000 scans.

	Without an ICP source, the technique does not require a carrier gas, eliminating all polyatomic molecular interferences derived from argon. In addition, because there is very little opportunity for air entrainment inside the ionization chamber, all oxygen, nitrogen, and carbon-based polyatomic and isobaric interferences are drastically reduced. Elimination of these ionic species significantly improves the detection for a whole host of elements, including Si, S, Ca, Mg, Si, Cr, and Fe, which are traditionally problematic for ICP-MS. This is exemplified in Figure 4, which show a 0–130 amu scan of a high purity nickel certified reference material (IARM-191A, Analytical Reference Materials, Intl.). The major isotopes of nickel at masses 58, 60, 61, 62, and 64 amu are shown in the center of the scan, while zoomed sections are shown in the boxes. It can be seen that spectral peaks for the different isotopes of Mg, Si, S, Fe, Cr, Cu, Ca, Mo, and Sn are clearly being detected and measured at the low ppm level. It should also be emphasized that using an ICP-MS instrument, either as a solution technique or coupled with a laser ablation system, there would be large spectral overlaps from

Ca. The green traces, which represent theoretical isotopic distributions, closely match the experimental results across the entire mass range, indicating that no such spectral overlaps are present.

	To emphasize the purity of the elemental spectral fingerprints across the entire mass range, Figures 5a and 5b show a LALI mass spectrum of a NIST 610 standard reference glass. Figure 5a exemplifies a suite of transition elements in the spectral region 0–90 amu, free of the most common polyatomic and isobaric interferences, while Figure 5b shows some rare earth elements in the spectral region 90–220 amu, where doubly charged interferences are commonly observed. Theoretical isotopic distributions are shown in green.

–90 amu) of NIST 610 standard reference glass, with zoomed regions of specific elements highlighted; (b) LALI mass spectrum (90–220 amu) of NIST 610 standard glass, with zoomed regions of specific elements highlighted.

	LALI also provides considerable improvements in transmission efficiency of an ion beam compared to techniques that generate ions at atmospheric pressure. For example, ions generated by the plasma discharge of an ICP-MS instrument at atmospheric pressure are generally transferred in several stages before reaching the high-vacuum mass analyzer.  Each stage transition of cones and/or lenses removes a significant portion of ions. For instance, LA–ICP–MS has a very high ionization efficiency for elements with a first ionization potential (FIP) less than 8 eV, but only ~1 in every 10

 ions reach the detector (~0.01–0.001% transmission efficiency). The LALI source is already under vacuum, so it does not suffer from transmission loss going from atmospheric pressure to vacuum. Removing the atmospheric or vacuum interface greatly improves transmission efficiency, allows for higher sensitivity, and further reduces matrix effects by removing plasma-ion spatial interaction effects.

Identification of Atomic and Molecular Species

	LALI is capable of analyzing both inorganic and organic species, which is difficult to carry out with other techniques that suffer from the problems previously discussed (8). The ability to analyze organic compounds by LALI has been studied by many groups for applications including planetary missions and crude oil analysis (6,9). The analysis of organics utilizes the infrared (IR) component of the Nd:YAG laser (1064 nm). The intense IR pulse flash heats the sample (10

 K/s) to desorb intact material from the sample surface (10). Following desorption, organic compounds are ionized via MPI, using the secondary ionization laser as previously described. The ability to analyze both organics and inorganics in the same analytical run enables mapping (or bulk characterization) of both in the same sample almost simultaneously after a quick mode switch. To enable accurate assessment and interpretation of molecular species, an optional high resolution TOF mass spectrometer with a resolving power of up to 14,000 is available.

	LALI–TOF-MS is suited to many application areas by customizing the configuration of the mass spectrometer, based on the spectral demands of the analysis. Under normal conditions for carrying elemental analysis, the resolving power (m/dm) of the TOF mass spectrometer is in the order of 700–1100 (the range for quadrupole MS is typically 400–500). However, for characterizing molecular species, the resolving power can be increased from 7000 up to 14,000. Figure 6 is a plot of resolving power (as m/dm) against mass (

) for the typical configuration used for trace element analysis.

	To demonstrate the practical benefits of resolving power, a spectral scan of five barium isotopes at 138, 137, 136, 135, and 134 amu using a resolving power of 750 is exemplified in Figure 7, showing the clean separation and the isotopic purity of the Ba isotopes (theoretical distribution of the isotopes is shown in green). A comparison of experimental vs. theoretical abundances for each of the isotopes is also shown, which demonstrates very good agreement, within experimental error.

Macro and Micro Analysis and Imaging Applications

	This technology is well suited for both macro and micro analysis, together with laser imaging studies. This is exemplified in Figure 8, which shows the sample chamber opening to allow the sample tray to be loaded.

	A macro-camera then opens to take a high-precision, spatially located picture. After the sample chamber door closes the chamber begins to pump down to vacuum, and the high-resolution image from the macro-camera is loaded onto the touch screen interface. The macro-image is used to enable navigation around the samples, as shown in Figure 9. Moving back and forth on the screen physically moves the sample stage within the chamber, and aligns the desired area properly with the lasers. “Pinching” on the image zooms in and switches to a live microscopy image that allows precision when choosing an area to analyze. From the live view, spots, lines, or rasters for maps are chosen. After selecting the type and number of sampling areas, analysis and data processing are automated, and all that remains is to interpret the results. This capability is well-suited for microanalysis of small surface inclusions, depth profiling analysis for coating thickness, or two-dimensional, high-spatial-resolution, multi-elemental mapping, rapidly becoming an important research tool in the field of geological, biological and medical imaging studies (11).

	LALI-TOF-MS provides high specificity and high sensitivity quantitative analysis for both bulk and micro analysis, together with elemental and chemical mapping, without the need for complex quantification schemes or matrix-matched standard materials. The technique’s simple design enables field portability, and its easy-to-use, intuitive interface makes personnel and training requirements very straightforward. Together, these factors open a wide range of potential inorganic and organic application areas. As a result, this emerging technology is expected to have a large impact in the field of geological, metallurgical, petrochemical, agronomy, agricultural, biological, and cannabis studies.

		P. Hurtado, F. Gamez, and B. Martinez-Haya,

		Y. Bussweiler, O. Borovinskaya, and M. Tanner,

is principal of Scientific Solutions, a consulting company that serves the application and writing needs of the trace element user community. He has worked in the field of atomic and mass spectroscopy for more than 40 years and has written over 100 technical publications including a 15-part tutorial series on ICP-MS. He recently completed his fourth textbook entitled

Measuring Elemental Impurities in Pharmaceuticals: A Practical Guide,

 and is currently working on his next book project which focuses on heavy metals in cannabis and hemp. He has an advanced degree in analytical chemistry from the University of Wales, UK, and is also a Fellow of the Royal Society of Chemistry (FRSC) and a Chartered Chemist (CChem).

Atomic Perspectives

Recent advances in laser ablation laser ionization TOF mass spectrometry (LALI-TOF-MS) are allowing laboratories to reach required limits of quantitation for trace impurities in solid materials by direct analysis, while avoiding common limitations of other techniques.

Advances in Trace Element Solid Sample Analysis: Laser Ablation Laser Ionization TOF Mass Spectrometry (LALI-TOF-MS)

In situ high-pressure Raman measurement of ascorbic acid has been conducted in the pressure range of ambient pressure to 14 GPa. A phase transition occurs at 3.8G Pa, and, at the pressure of 3.8 GPa, a small C=O band appears at 1767 cm

, and the intensity increased with further compression. Furthermore, as the pressure increases, the crystal symmetry of ascorbic acid becomes lower.

	Ascorbic acid, also known as vitamin C, is an acidic and strongly reducing polyol containing six carbon atoms. It is a colorless and odorless flake crystal, soluble in water, but insoluble in fat solvents (1,2). Ascorbic acid is easily oxidized to dehydrogenated vitamin C, but it is stable in an acidic environment. It is easily oxidized by oxygen, and is susceptible to temperature, pH, copper ions, iron ions, and light (3). Ascorbic acid is widely found in fresh vegetables and fruits, as well as in other foods. It is one of the important nutrients for human nutrition. If the body lacks ascorbic acid, it can cause scurvy, characterized by bleeding in the skin and gums (4,5). In addition, it is a neuromodulator, and is used by neurons in many different functions and enzymatic reactions (6–8). Due to its high reactivity to oxygen, ascorbic acid has received extensive attention related to the prevention and treatment of cancer (9–13).

	In the past two decades, high-pressure in situ Raman spectroscopy, using diamond anvil cell technology, has become one of the important means to study molecular structure and properties under high pressure (14–20). We can study the changes in material structure and electron orbital changes through Raman spectroscopy (21–26).

	Pressure is an effective thermodynamic parameter, and is considered a powerful tool for studying the detailed structure and physical and chemical properties of matter. Pressure can effectively change the lattice structure, and therefore shorten the distance between atoms-this affects the nature of chemical bonds between molecules, molecular conformation, crystal structure, and solid stability (27–30). Pressure-induced phase transition is a common phenomenon in high-pressure science. To date, a high-pressure Raman study of ascorbic acid has not been reported.

	The ascorbic acid used in this experiment was purchased from Sigma Aldrich, and was used without purification. The high-pressure cell used in the experiment is a symmetric diamond anvil cell (DAC). The DAC has two diamonds with 500 μm culet size. A T301 (thickness 250 μm) steel gasket was used as a sealing device for generating high-pressure. Ruby powder, having a diameter of about 12 μm, was used as an internal standard to calibrate and convey the pressure in the cavity. The ruby fluorescent line R1 (at a wavelength of 694.2 nm) linearly moves as the pressure increases (31). No additional pressure-transmitting medium was used in this experiment.

	Raman spectra were measured using a Renishaw instrument via confocal Raman spectroscopy. The excitation source was a 514.5 nm Argon Particle Laser (Spectra Physics 160M). Backward Raman scattering was measured with a 50× objective lens. The laser power used was 10 mW. The accumulation time for the measurement was typically 60 s. All of the experiments were carried out at constant room temperature (~21

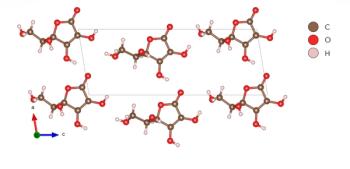

	Ascorbic acid crystal belongs to the monoclinic crystal system, and its space group is P21 (32,33). Figures 1 and 2 show the crystal structure and Raman spectrum of ascorbic acid, respectively, in a normal-pressure environment. The Raman spectrum of ascorbic acid is consistent with what Singh and associates have reported (8). The strong Raman scattering lines located at 1124, 1651, 1664, and 2915  cm

 are assigned to C-O bending, C=C stretching, and C-H stretching, respectively. Peaks at 562 and 583 cm

 are attributed to be OH out-of-plane deformation and C=C ring stretching mode, respectively. Detailed Raman vibrational assignments are given in Table I.

High-Pressure Raman  Spectroscopy of Ascorbic Acid

	Figure 3 shows the high-pressure Raman spectra of ascorbic acid. It can be seen that as the pressure increases the bandwidth of most Raman bands will gradually widen. The Raman peaks shift to a higher wavenumber region. This is because, as the pressure is gradually increased, the distance between atoms decreases, and the force constant of the valence bonds increases, so that the vibration frequency increases. Figure 3 shows the Raman spectra of ascorbic acid recorded at selected pressure for the 100–3200 cm

 spectral region. Raman spectra below 100 cm

 cannot be observed, due to the notch filter in use. In addition, it is difficult to identify the Raman peaks at around 1340 cm

, due to the first-order Raman peaks of the diamond cell. Furthermore, as can be seen from Figure 3, with the increase of pressure, the vibration intensity of the Raman band at 583 is enhanced. This may be due to the compression of the C=C ring, and the change in the dihedral angle of the OH outside the ring. And at the pressure of about 3.8 GPa, a weak C=O stretching band appears at 1767 cm

. Further compression will result in a gradual increase in the intensity of this band-possibly the result of the activation of the silent mode, due to changes in molecular symmetry (23).

Frequency–Pressure Relationship of Ascorbic Acid

	In general, the Raman frequency pressure relationship can provide useful information about the crystal structure at high pressure. In addition to the disappearance of the original peaks and the appearance of new peaks, the frequency–pressure relationship is also an important indicator of the pressure-induced phase transition (34–35). As can be seen in Figure 4, with an increase of pressure, the relationship between frequency and pressure is basically linear. However, at about 3.8 GPa, the frequency–pressure slope of the Raman peaks of ascorbic acid changes significantly. The four linear equations at 562, 624, 693, and 3000 cm

 are changed from y = 3.2708x+563.19, y = 2.377x+625.15, y = 7.3727x+695.54, and y = 9 .85x+3004.54 to y = 1.84702x+565.392, y = 1.3612x+626.75, y = 3.285x+700.8, and y = 6.545x+3022.8287, respectively (

]). The sudden changes in the frequency-pressure relationship should correlate with the material phase transition. Therefore, we believe that a first-order phase transition of ascorbic acid occurs at approximately 3.8 GPa. We define the phase under pressure of 3.8 GPa as phase I, and when the pressure is higher than 3.8 GPa as phase II. The change in the molecular properties of ascorbic acid caused by phase transition remains a subject to be studied.

	Additionally, a change in the symmetry of the molecular point group in ascorbic acid appears to accompany the phase change at 3.8 GPa. New bands at 1510 and 1767 cm

 appear in phase II, indicating that the symmetry of ascorbic acid in phase II is lower than phase I. This also may be related to the fracture and rearrangement of the H-bond structure. Due to the effect of high pressure, most of the frequency–pressure Raman peaks of ascorbic acid become smaller. We also believe that the bonds in the crystal become more rigid after the phase transition.

	In this work, we used high–pressure Raman spectroscopy (~14 GPa) to study the structure and Raman spectra of ascorbic acid. By observing changes in peak positions and intensities at approximately 583, 693, and 1746 cm

, it is shown that the internal and side chains of the ascorbic acid ring are changed under high pressure. Furthermore, we analyzed the frequency–pressure relationship of ascorbic acid, and found that ascorbic acid undergoes a phase transition at 3.8 GPa, and the symmetry of the crystal structure also changes. We hope that the results of this study can provide some insights into the study of the structure of ascorbic acid under high pressure.

	This work was supported by the Jilin Provincial Research Foundation for International Scientific and Technological Cooperation Projects (Grant No.20170414026GH), and the Jilin Provincial Science Foundation (Grant No.20180101219JC).
