Resolving Analytical Challenges in Pharmaceutical Process Monitoring Using Multivariate Analysis Methods: Applications in Process Understanding, Control, and Improvement

SpectroscopyMarch 2023
Volume 38
Issue 03
Pages: 22–29

Multivariate analysis (MVA) refers to an assortment of statistical tools developed to handle situations in which more than one variable is involved. MVA is indispensable for data interpretation and for extraction of meaningful data, especially from fast acquisition instruments and spectral imaging techniques. This article reviews trends in the application of MVA to pharmaceutical manufacturing and control. The MVA models most commonly used in drug analysis are compared. The potential of MVA to resolve analytical challenges, such as overcoming matrix effects, extracting reliable data from dynamic matrices, clustering data into meaningful groups, removing noise from analytical response, resolving spectral overlaps, and providing simultaneous analysis of multiple components, are tackled with examples. Industrial applications of MVA capabilities are described, with special emphasis on process analytical technology (PAT) and how MVA can aid in process understanding and control. A scheme for selecting an MVA model according to the available data and the required information is proposed.

Modern pharmaceutical manufacturing involves the integration of analytical chemistry into critical steps of the manufacturing process for real-time monitoring and control. This integration is essential, especially in continuous manufacturing schemes, to ensure uniform product quality and process robustness, and to reduce manufacturing cost. The continuous monitoring required in a continuous manufacturing environment is challenging for conventional analytical methods. To resolve such challenges, instruments that allow fast and simultaneous capture of multiple data points are preferred, such as near infrared (NIR), Fourier transform infrared (FT-IR), and Raman spectroscopy; mass spectrometry (MS) and UV-visible (UV-vis) photodiode array detectors that capture multiple wavelengths are also commonly recruited. To interpret the complicated analytical signal of these tools, multivariate regression analysis (MVA) is necessary.

MVA refers to an assortment of statistical tools developed to handle situations in which more than one variable is involved (1–5). MVA can be applied to resolve numerous analytical challenges in the pharmaceutical industry, such as eliminating sample extraction steps during process monitoring, determining the drug substance in an unknown solution that is constantly changing or in a dynamic matrix, minimizing the impact of instrumental fluctuations, and enabling the simultaneous determination of more than one component in a certain matrix.

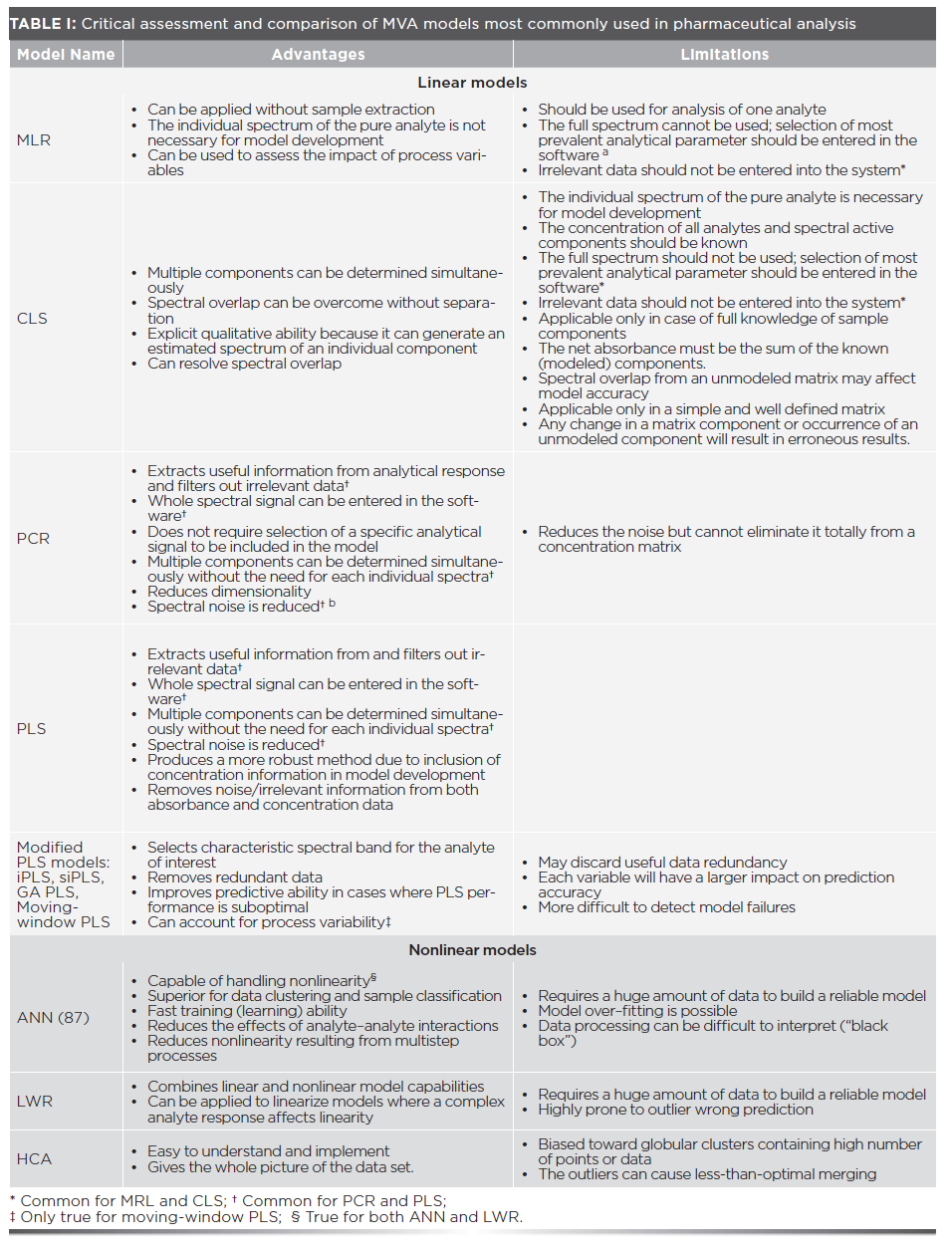

Selecting the appropriate MVA model has always been challenging task (2,3,6). In this review, the MVA models most commonly used in drug analysis are discussed and compared. A scheme for selecting a suitable MVA model is proposed (Figure 1). The available input data and the type of information required determine whether a supervised or unsupervised model, and which algorithm, should be used. Supervised models are those in which the data include input variables and an output variable, and an algorithm is applied to learn the relationship between the variables and train the model to predict the output when new data are provided. Supervised models can be used for either regression or clustering. Examples of supervised models are multiple linear regressions (MLR), classical least squares (CLS), partial least squares (PLS), artificial neural networks (ANNs), and locally weighted regression (LWR). Unsupervised models are used when the available data are only the “X” input variables. They can be used for clustering and association. Examples of unsupervised models are principal component analysis (PCA) and hierarchical cluster analysis (HCA) (4,5).

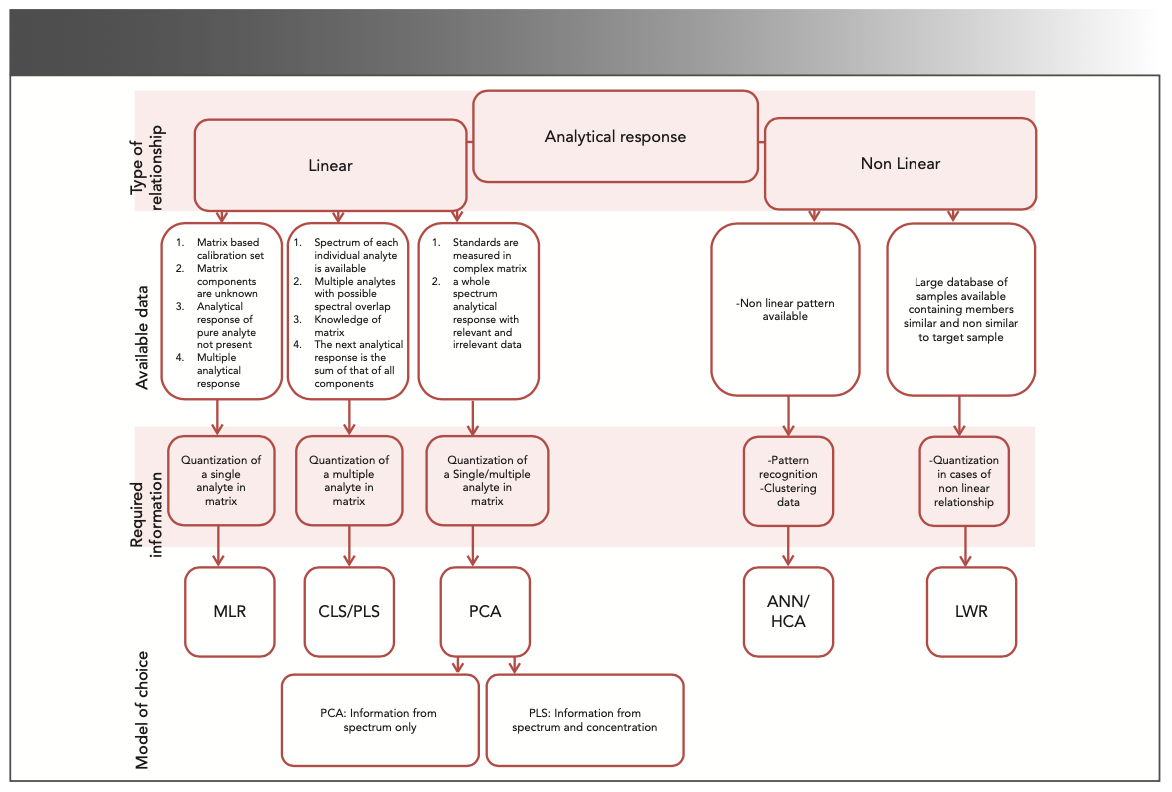

FIGURE 1: A proposed scheme for selecting the optimal MVA model for pharmaceutical analysis.

FIGURE 1: A proposed scheme for selecting the optimal MVA model for pharmaceutical analysis.

CLS and MLR are used for discrete measurements, such as absorbance at certain wavelengths. CLS can determine multiple analytes even in the presence of interfering matrix components, but all spectrally active ingredients should be fully known and modeled during calibration (7). MLR is best applicable for determining a single analyte in the presence of specific matrix components. For MLR, calibration can be done by varying the single analyze concentration in the sample matrix, which allows test samples to be directly analyzed without extraction (8). In both methods, irrelevant spectral information may affect the model prediction accuracy.

In more complicated models where the analytical signal is a full range that may contain both relevant and irrelevant information, PLS can be applied. PLS finds the latent variables. These latent variables relate to the largest covariance between the signal and response matrices (9–11). In this context, PLS is considered another type of supervised learning. It’s worth mentioning that CLS is considered the first generation of the PLS method (12). ANN (13) and LWR (14) can work well in nonlinear models.

The unsupervised multivariate methods are PCA and HCA. In both techniques, a correlation matrix (or sometimes a covariant matrix) is usually computed between the different input x–variables (factors). In PCA particularly, the number of generated principal components is equivalent to the number of input variables. Importantly, the variation in the studied and investigated data and scale ranges is usually normalized to an important statistical parameter, the unit variance (1/SD), prior to analysis (where SD is standard deviation). The correlation matrix is utilized to determine the data principal components, which are actually the eigenvectors of the matrix. Accordingly, the computed eigenvectors are ranked according to their eigenvalues (scalar values) and consequently, the eigenvector (which is actually a geometrical direction) with the largest eigenvalue is selected as the main principal component, followed by the vector having the second eigenvalue in magnitude, and so on (15).

Similarly, HCA depends on the correlation matrix to generate its specific dendrogram (dendron means tree in Latin). Both techniques help in clustering the data into meaningful groups for pattern recognition applications (12).

When information is scarce—a situation usually encountered in the early stages of screening—unsupervised methods, such as HCA and PCA, are preferred. In the later stages of screening, supervised methods such as MLR, PLS, and ANN are often used to predict specific sample properties while still using the former methods to detect similarities and dissimilarities in the data (16). A comparison of MVA techniques discussed in this paper, in terms of advantages and limitations, is presented in Table I. Examples of situations where MVA is analytically useful are discussed.

Eliminating Sample Extraction and Preparation

Eliminating sample extraction steps is necessary in many situations, such as for online, inline, or atline analysis. This would imply recruiting MVA for extracting relevant information from the captured data where the analytical signal contains information from the analyte of interest as well as other interfering materials.

Tablet monitoring using hyperspectral imaging (HSI) is an example of such an application (17). HSI is a nondestructive and fast analysis option that gives information about tablet component homogeneity and distribution as well as the presence of impurities (18–20). It works by simultaneous acquisition of spatial and spectroscopic data from a sample and gathering them into an HSI data cube where the x- and y-axes contain the spatial information while the z-axis contains the spectral information. Collected data are then processed to correct baseline drifts, spectral overlap, and multiplicative scattering; then, the region of interest (ROI) that best represents the analyte of interest is chosen with the aid of MVA models such as PCA. Following the identification of the ROI, a quantitative model can be generated either in univariate or multivariate mode.

Another application of MVA in chemical imaging is in the detection of counterfeit pharmaceuticals. The following techniques were applied for the detection of counterfeit Viagra tablets: Raman microscopy imaging for data acquisition, PCA for determination of the ROI, and K–nearest neighbor (KNN) for data classification. KNN is considered a basic classification technique. It is a supervised learning model that has great application in classification and pattern recognition. KNN functions by determining the Euclidian distances (the square root of the sum of the square differences) between the test sample and the standards available in the training set. It determines the K number of points that is closest to the test data. The test is identified based on the group to which the majority of the K objects belong (21).

Another example of the use of MVA is seen in HSI of the UV region from 225 to 400 nm for the determination of ibuprofen, acetylsalicylic acid, and paracetamol in tablets. The collected data were deconvoluted by PCA (22).

Monitoring the content and spatial distribution of salicylic acid in film tablets using FT-Raman mapping coupled to multivariate curve resolution (MCR) has also been described. The MCR assumes that the spectral response is a linear combination of the spectra of the pure components in the system. The model decomposes the instrumental response to the individual spectra and gives distribution maps of the components in the spectral image. In this study, pure spectra of salicylic acid and the other excipients were individually collected. FT-Raman mapping spectra were collected as 16 sample points from the flattened tablet surfaces over an area of 3000 × 3000 μm with a step size of 1000 × 1000 μm2. The ROI was selected based on the characteristic peak for salicylic acid and a salicylic acid distribution map was generated in which the active pharmaceutical ingredient (API) was located and the API concentration is represented by color intensity. Quantitation of the API content was performed by averaging the Raman intensity at 1635 cm−1 (the characteristic peak for salicylic acid) as collected from the 16 data points (23).

The solid state transitions of the API and excipients can be assessed by HSI. An example is the assessment of piroxicam and lactose dehydration on the surface of a tablet using NIR-based HSI using MCR–alternating least squares (ALS) and parallel factor analysis (PARAFAC) (24).

Another example is the application of fiber-array–based Raman HSI for the simultaneous, chemically selective monitoring of particle size and shape of pharmaceutical ingredients—acetylsalicylic acid, acetaminophen and caffeine—in analgesic tablets (Figure 2) (25).

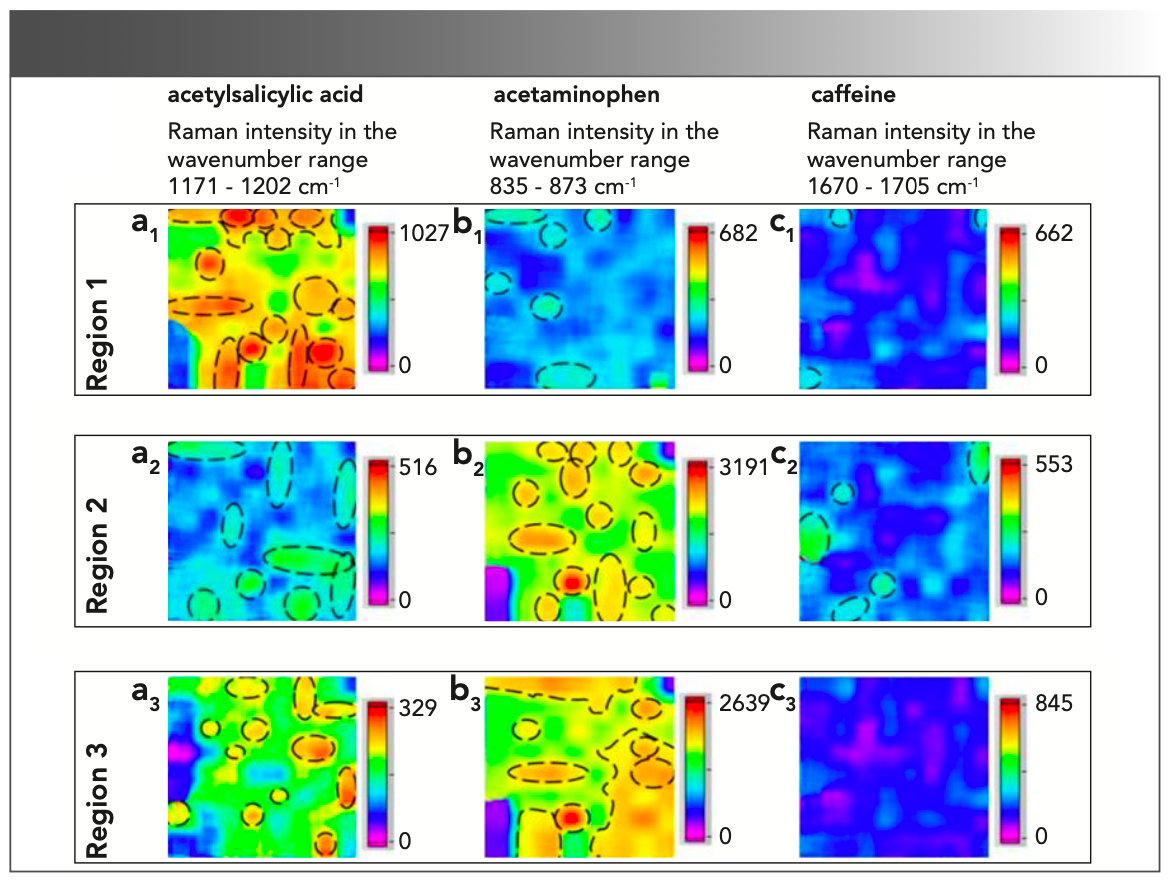

FIGURE 2: Representative Raman HSI of the distribution and particle shapes of (a1, a2, a3) acetylsalicylic acid, (b1, b2, b3) acetaminophen, and (c1, c2, c3) caffeine, in three different regions (1–3) of a tablet (25).

FIGURE 2: Representative Raman HSI of the distribution and particle shapes of (a1, a2, a3) acetylsalicylic acid, (b1, b2, b3) acetaminophen, and (c1, c2, c3) caffeine, in three different regions (1–3) of a tablet (25).

Monitoring blending and analyzing blend components is another analytical challenge that must be performed without extraction in continuous manufacturing. An example is the atline analysis of API in powder blends using FT–NIR where the analytical signal was captured in the range of 4000 to 12,500 cm−1. PLS was used to determine the latent variables that represent the covariance between spectral signal and the amount of API in sample (26). Another example is the determination of hydrochlorothiazide in powder blends by the use of NIR adjunct to PLS. The NIR spectra were recorded for powdered samples in the range of 100 to 2500 nm from which the region 640 to 1780 nm was chosen for the determination. A calibration curve was computed on laboratory-prepared powder blend samples in which additives were included. The procedures were accurately applied to test samples with no sample extraction or preparation (27).

Reducing the consumption of organic solvents is an important benefit of eliminating sample extraction. An example of this concept is the use of thermogravimetric analysis (TGA) for the direct quantitation of ascorbic acid in an effervescent dosage form. In the reported method, a calibration set was prepared using a series of different ascorbic acid concentrations in the presence of additives. The analytical response used was TGA measured at two temperatures for MLR modeling. A relationship was constructed between the ascorbic acid concentration and the TGA measurement at the two selected temperatures in the presence of additives. The method was validated and successfully applied to the determination of ascorbic acid in the dosage form. The method enabled direct analysis of ascorbic acid with no sample pretreatment steps, which reduces the volume of solvents and waste compared to other analytical procedures (28).

Determination of Drug Substance in an Unknown, Constantly Changing, or Dynamic Matrix

The components of a sample change frequently and rapidly during drug manufacturing. Continuous monitoring implies fast analysis to cope with the product evolution and minimizing the effect of variability in the sample components.

NIR is very valuable in this respect. It offers a very fast spectral acquisition method that can be applied for consistent analysis of blend uniformity or monitoring of the dissolution profile using MVA (such as PLS) for data interpretation (26,29). Similarly MVA can be applied to the monitoring of extraction processes (30) and completion of chemical reactions (31).

Minimizing the Impact of Instrumental Fluctuation, Inconsistency, Noise, Irrelevant Data, and Response Overlap

Proper application of an MVA model can correct for instrumental fluctuation and noise by extracting only relevant information. It can also model (qualitatively or quantitatively) spectral data containing overlapped signals. This capability enables the use for previously abandoned analytical tools for quantitative applications.

In this context, X-ray diffraction (XRD) is the most popular tool for polymorphic state assessment. It is a noncontact, nondestructive inspection technique; however, its quantitative application is hindered by the high probability of error because of sample heterogeneity or improper crystal orientation on sampling (28,32). Such obstacles can be overcome by using MVA. A very good example was presented by Otsuka and colleagues where PCA was used to extract four PCs from the XRD measurement that best represent the hydrate content in theophyllin powder. The method was successfully applied to the determination of theophylline monohydrate in theophylline anhydride bulk substance (33). Other examples are presented in other studies (33,34). Another example is the use of FT-IR for estimation of crystalline purity of cimetidin using PCA for data refinement (35).

In this context, it is very important to mention prediction-augmented CLS (PACLS), which is a CLS modification that adds possible spectral variation to the CLS calibration model. Such modification allows identification and removal of spectral variation resulting from a spectrally active component or instrument fluctuation and drifts that were not introduced during model development. The model enables method transfer between different instruments (36,37).

Selecting the Derivative of a Therapeutic Molecule with the Highest Loading on a Nanocarrier

The differences in results between two natural molecules for the treatment of Alzheimer’s disease (curcumin and bisdemethoxycurcumin) were investigated. The difference between these two molecules in terms of their behavior in the biopharmaceutical formulation (loading on poly [lactic-coglycolic acid] [PLGA] nanoparticles) and their therapeutic levels (interaction with certain receptors) were attributed to differences in their main constitutional, electronic, and physicochemical descriptors (38,39). Five or more hypothesized molecules were introduced and their corresponding descriptors were calculated (40). Because the number of descriptors was actually six (more than two dimensions), a multivariate statistics method, PCA, was used to analyze the results and cluster the investigated molecules, according to their descriptors, into meaningful groups (41,42). Interestingly, the docking behavior of the clustered hypothesized molecules with curcumin was very close to that of the parent compound on all of the investigated macromolecules and receptors. Thus, PCA helped address the analytical and manufacturing challenge of determining which of the of the chemical derivatives achieved the highest load on the investigated nanocarrier (the PLGA nanoparticles).

Simultaneous Determination of More than One Component in a Matrix

MVA is useful for resolving spectra of interfering analytes—extracting selective information from unselective data. CLS is especially important in resolving spectral overlaps where during the model development the individual spectrum of each component is input into the system to determine its absorptivity. An example is the simultaneous determination of the spectrally overlapping lamivudine and stavudine (43). Similarly, trimethoprim and sulfamethoxasole were simultaneously determined in an animal bolus preparation without an initial separation step despite their overlapping spectra (44). Another important MVA model for multicomponent analysis is PLS. An example is the simultaneous determination of spectrally overlapping analytes using NIR coupled to PLS without sample pretreatment (45,46).

Handling Nonlinearity in an Analytical Method

LWR and ANN are commonly used to resolve nonlinearity in measurement. In LWR models, a large database of samples is used containing variable amounts of the analyte of interest. On the analysis of a new sample, a higher weight is given to database samples close to the analyzed one to create a modified calibration curve. Adjunct to LWR, PLS can be used to extract the most relevant region in the spectra that best represent the analyte of interest; this reduces spectral noise and irrelevant data in the spectra. An example is the analysis of ibuprofen and magnesium stearate during monitoring of cleaning procedures (47). Another example is the use of LWR– PLS to handle nonlinearity in NIR measurements during determination of API content in granules for tableting (48).

Another application is the simultaneous determination of rifampicin and isoniazide by continuous–flow chemiluminescence (CL) using N–bromo succinic acid (NBS) as a reagent and ANN for data deconvolution (49). Rifampicin degrades in alkaline medium, affecting its reaction with NBS and the resulting CL intensity, but this is not the case for isoniazide. This variation in the reaction kinetics of the two drugs that can be harnessed for their simultaneous analysis, provided proper data management. Meanwhile, both compounds react with each other, resulting in CL nonlinearity. For their simultaneous analysis, alkaline solutions of both drugs were pumped into the CL system and merged with NBS for the reaction to take place. The CL emission was measured over 300 s with a 1 s interval. PCA was used to select the PC that represented the concentration of both components and the PC information was used as an input into the ANN model to improve its performance. For the ANN model, optimum performance was obtained when the input nodes were 20, the iterations were 6000, which represents 20 samples each measured at 300 s (20 x 300), the hidden nodes were 22, and the output was 2 to represent the two active ingredients (49).

Extracting Useful Information from Complex and Overlapping Spectra of Commonly Used PAT Tools

Process analytical technology (PAT) is a system for designing, analyzing, and controlling manufacturing through timely measurements of critical quality attributes (CQA) and critical performance attributes (CPA) of raw and in-process materials and processes with the goal of ensuring final product quality (50). In other words, it is the integration of analytical chemistry into critical steps of a pharmaceutical process for real-time monitoring and control. This integration is essential, especially in continuous manufacturing schemes, to ensure uniform product quality as well as process robustness, and to reduce manufacturing cost.

To achieve real-time monitoring and control, PAT tools are recruited. These are process analyzers (sensors) enabling real-time or nearly real-time analysis. A proper PAT tool should be nondestructive, noninvasive, not require sample withdrawal or contact, and provide fast data acquisition. Ideally handheld instruments and those connected to a probe (inline accessory) are preferable (50).

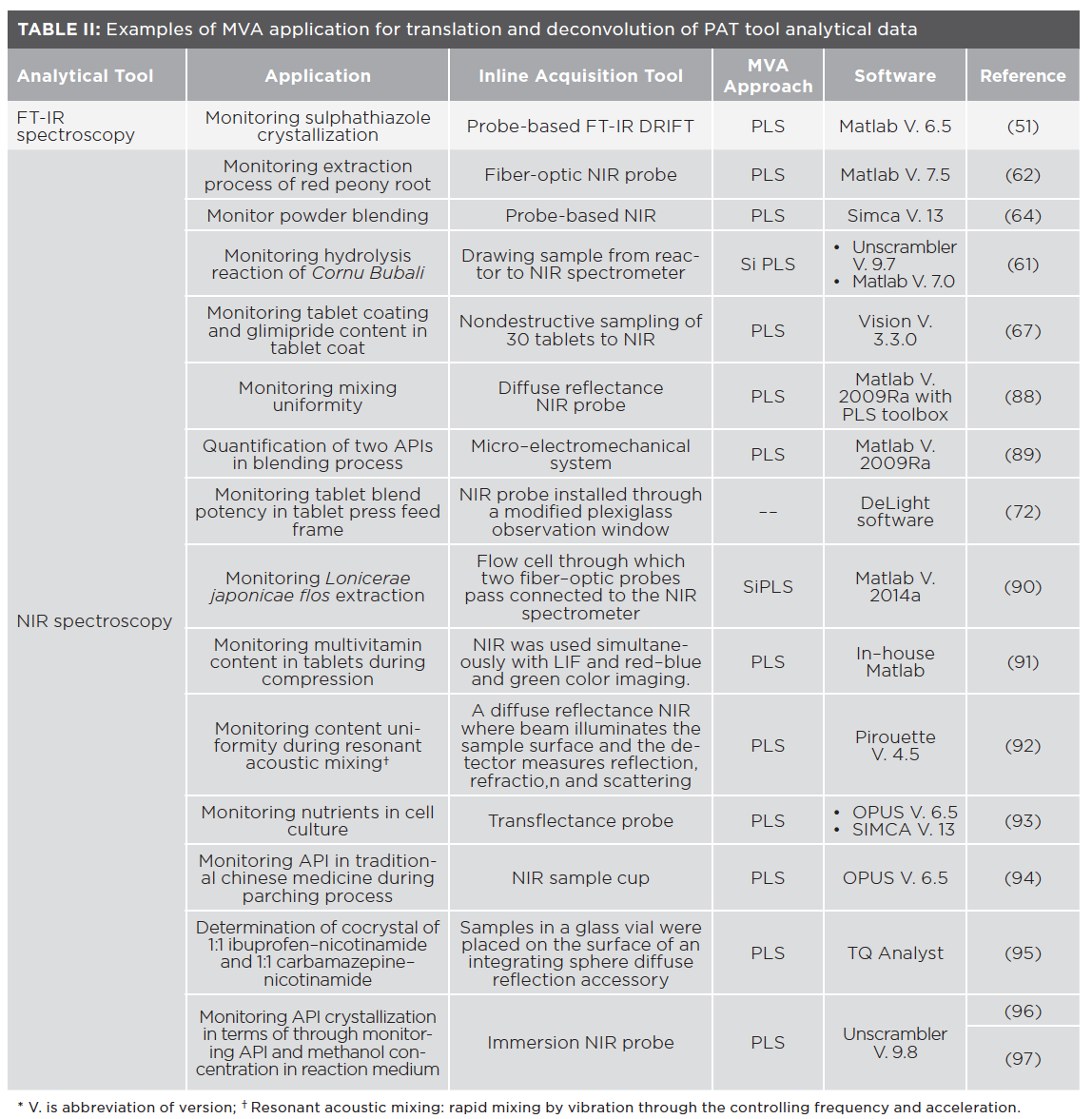

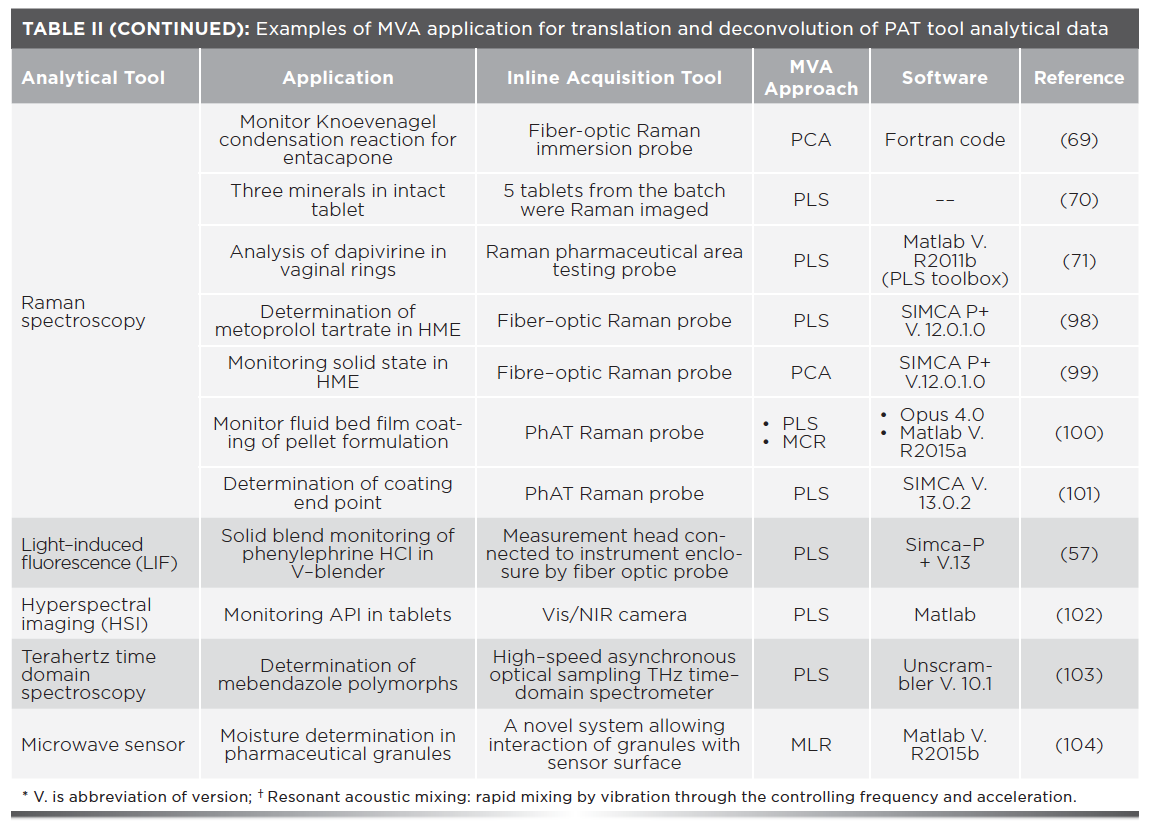

MVA is used with PAT tools to extract useful information from overlapping and complex spectra, analyze multiple components, generate robust data in a continuously changing and dynamic matrix, and handle signal nonlinearity and correlating CPPs affecting the process. The combination of MVA with PAT tools enables adequate process understanding and control. Examples of PAT tools are FT-IR, NIR, and Raman spectroscopy and other whole-spectrum acquisition instruments. Table II includes examples of such applications.

The use of an immersion probe attenuated total reflectance FT-IR (ATR-FT-IR) instrument was presented to monitor the production of sulphathiazole and assess its polymorphic state. The methods were capable of quantifying sulfathiazole product in the range of 0–30 g and predicting the predominant sulphathiazole polymorphs. In both applications, PLS was used to process data (51). Similarly, probe-based ATR-FT-IR spectroscopy was used to monitor a Curtius rearrangement reaction (52). Other examples of recruiting FT-IR for inline monitoring are the flow FT-IR cells suggested by Ley and coworkers (53–56).

NIR is a superior PAT tool. It is the most widely used tool for PAT because it allows fast data acquisition through transparent glass, plastic containers, or (most commonly) through a probe, with acceptable accuracy. NIR radiation can penetrate deep into the sample, allowing extraction of chemical and physical information (57,58). The analysis is nondestructive and thus will not affect final product yield and also will not require a break in the production line for sampling (59). Both NIR imaging and spectroscopy are described in literature. However, 2D imaging data are inadequate for monitoring deep and dynamic events such as blend uniformity. In such cases, the use of NIR probes will be superior, provided proper placement for full data acquisition (60).

Immersion-probe based NIR has been described for inline monitoring of amino acid concentration during hydrolysis of the traditional Chinese medicine Cornu Bubali using PLS for data processing (61). Similarly, in an other example, NIR was used to monitor total solid, paeoniflorin, and benzoic acid during red peony extraction using a PLS regression model (62). In another case, analysis of the chromatographic purification of crude heparin was described, employing NIR monitoring augmented with PLS to select the variable (signal) representing the heparin content (63).

In another case, a probe-based NIR system placed at the tablet feed frame was used to monitor API and excipients during tablet preparation. The spectral data were processed by PLS to give information about powder uniformity (64). A similar application was the real-time determination of acetaminophen in a powder blend and tablets during tablet production (65). Likewise, an inline NIR spectroscopic method for continuous blend potency determination in the feed frame of a tablet press was reported using sodium saccharine as a model active ingredient. In this method the NIR probe was implemented in the feed frame of the rotary tablet press. A PLS model was used for data analysis (66).

NIR was found to be a successful PAT tool for inline monitoring of a tablet coating using PLS. A fixed-dose tablet of glimepride and metformin was used as an example, where metformin constitutes the tablet core and glimepride exists in the tablet coating. Inline NIR determination of glimepride enabled confirmation of complete coating and identification of the appropriate coating time, which further improved the pharmaceutical process. The process is illustrated in Figure 3 (67).

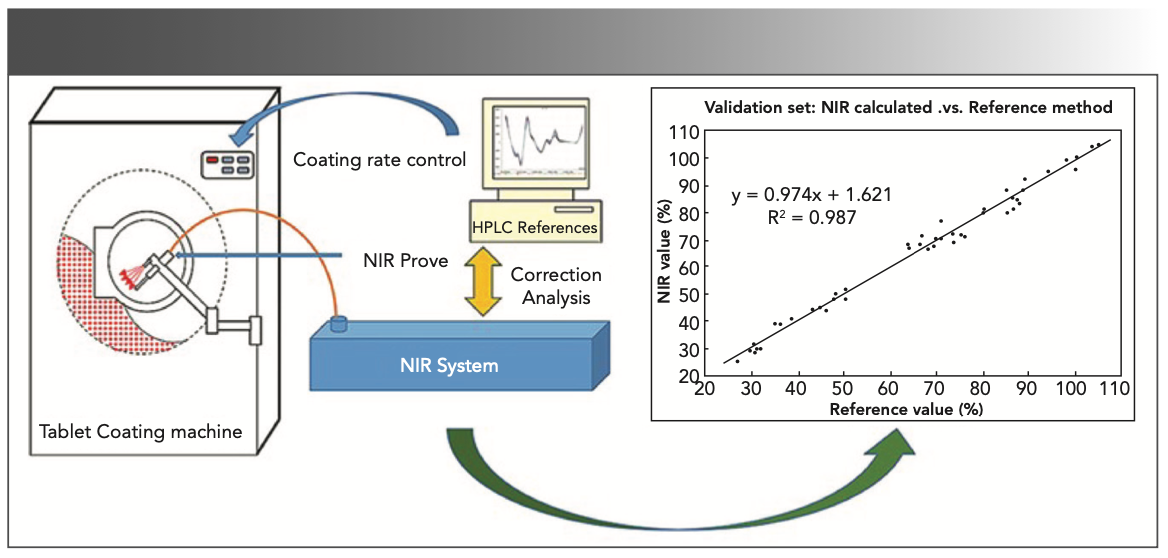

FIGURE 3: A PAT method using NIR to evaluate a tablet coating process. An NIR probe was mounted in line to monitor glimepride during tablet coating and to identify the coating process endpoint. This information can be used to control the coating process and the amount of drug used. Reprinted with permission from (67). RightsLink license number: 4980260258470.

FIGURE 3: A PAT method using NIR to evaluate a tablet coating process. An NIR probe was mounted in line to monitor glimepride during tablet coating and to identify the coating process endpoint. This information can be used to control the coating process and the amount of drug used. Reprinted with permission from (67). RightsLink license number: 4980260258470.

The use of FT and dispersive NIR instruments to handle continuous process changes such as variation in powder flow rate have been compared (68). In this ex- periment a reflectance NIR probe was connected to FT and dispersive instruments. PLS was used for data processing in both cases. The FT-NIR system showed greater sensitivity and selectivity than the dispersive instrument (68).

Raman spectroscopy is another nondestructive optical tool, with molecular fingerprinting capabilities that enables its application in process monitoring. It has been described for inline Knoevenagel condensation reaction monitoring for entacapone formation using PCA as the associated MVA model. The combination of Raman spectroscopy and PCA enabled faster identification of a reaction end point (69). Determination of minerals in whole tablets has also been described, where Raman spectroscopy was coupled to PLS (70). This technique has also been used for the assessment of dapivirine in vaginal rings (71).

Light–induced fluorescence (LIF) is another emerging PAT tool, and its high sensitivity enables its use for monitoring APIs at very low concentrations. In one example, LIF was mounted using a fiber optic probe into a V–blender. Adjunct to PLS, LIF was able to monitor blend uniformity and accurately determine API content (57).

Handling Process Variability and a Constantly Changing, Dynamic Matrix

Changes in process variables, such as powder rheology, flow rate, and process temperature, may affect beam scattering and thus pose a spectral challenges for PAT tools (72,73). Also, physical properties of measured samples, such as particle size and shape and sample density and compactness may affect the analytical performance of PAT tools (74).

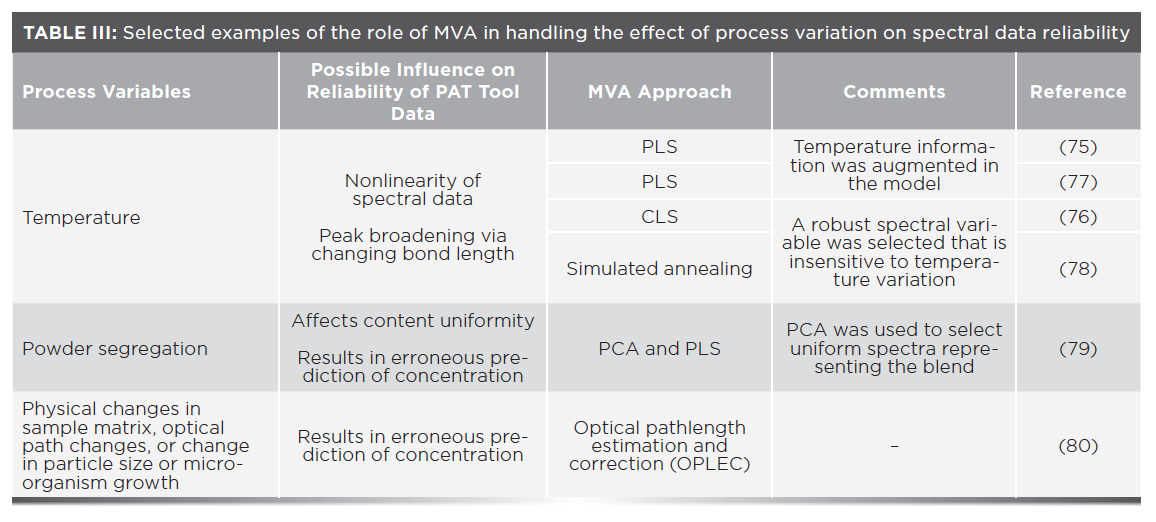

MVA can be used to correct the influence of process variables on accuracy of analytical data (Table III) (74,75). An example is handling the effect of temperature on the accuracy of acquired spectra. This correction can be achieved by augmenting a calibration model to handle temperature-induced variations, as seen in temperature-augmented CLS models (76) and an augmented PLS model (77). An alternative approach is the MVA-assisted selection of a temperature-insensitive variable in the analytical response (78).

Similar to correcting the effect of powder segregation on the accuracy of NIR spectra, inline collection was performed of 500 spectra of a melt extrude, from which 300 were chosen by the PCA model to represent the API content in the melt (79).

Optical path changes may include a change in particle size and sample density, resulting in multiplicative light scattering that in turn affects spectral data reliability. In one example changes in the optical path were corrected by optical pathlength estimation and correction algorithms. The model was applied to correcting NIR spectrum in the presence of variable particles that induced beam scattering (80). Examples also can be found in another study (81).

Beside MVA, proper placement of PAT tools has been suggested as a solution (72). Other researchers have developed statistical models to correct for such signal effects (82). The use of two calibration models has been suggested. The first is a coarse model working over a wide concentration and parameter range throughout a dynamic process (such as blending). The second is a “local” model with fine concentration prediction for a specific stage of blending (58). A recent study applying Raman spectroscopy to inline monitoring of mammalian cell culture production proposed optimizing the Raman acquisition time and including multiple batches in calibrating the model. This was done because acquisition time and batch-related variabilities may affect the integrity of the spectral results (83).

Enhancing Process Understanding and Control

Process understanding helps identify critical points and aspects of a manufacturing process, reducing efforts in process development and scale-up. Figure 4 illustrates a PAT application that reduced the criticality of numerous parameters in a blending process (82). Previously, all the CPPs were considered critical to achieve adequate manufacturing. On applying PAT, an NIR probe was mounted to monitor blend uniformity (the CQA). Mixing speed was identified as the CPP that needed to be adjusted to achieve the desired CQA (82).

FIGURE 4: Illustration of the impact of PAT in evaluating the criticality of blending process parameters. (a) Conventional end-of-line testing where all CPPs were considered critical to achieve adequate manufacturing. In the PAT application (b), NIR was used to monitor blend uniformity, which was identified as the major CQA, and the mixing speed was identified as the CPP that must be controlled. Reprinted with permission from (82); RightsLink license number: 4980260446577.

FIGURE 4: Illustration of the impact of PAT in evaluating the criticality of blending process parameters. (a) Conventional end-of-line testing where all CPPs were considered critical to achieve adequate manufacturing. In the PAT application (b), NIR was used to monitor blend uniformity, which was identified as the major CQA, and the mixing speed was identified as the CPP that must be controlled. Reprinted with permission from (82); RightsLink license number: 4980260446577.

In another case, PAT enabled understanding the CPPs affecting production of transdermal glimepride liposomal films. Plackett–Burman screening design was applied to quantify the impact of each process variable on the final CQA of the product. MLR was used to correlate CPPs to the CQA (59).

An NIR probe mounted inline was employed to understand CPPs affecting the hot melt extrusion (HME) of vegetable calcium stearate as a matrix carrier and paracetamol as the API using PLS for NIR data interpretation. The results demonstrated that the screw design was the predominant factor affecting uniformity of the preparation, followed by the effect of multiple feeders; the screw speed was shown to not be influential (79).

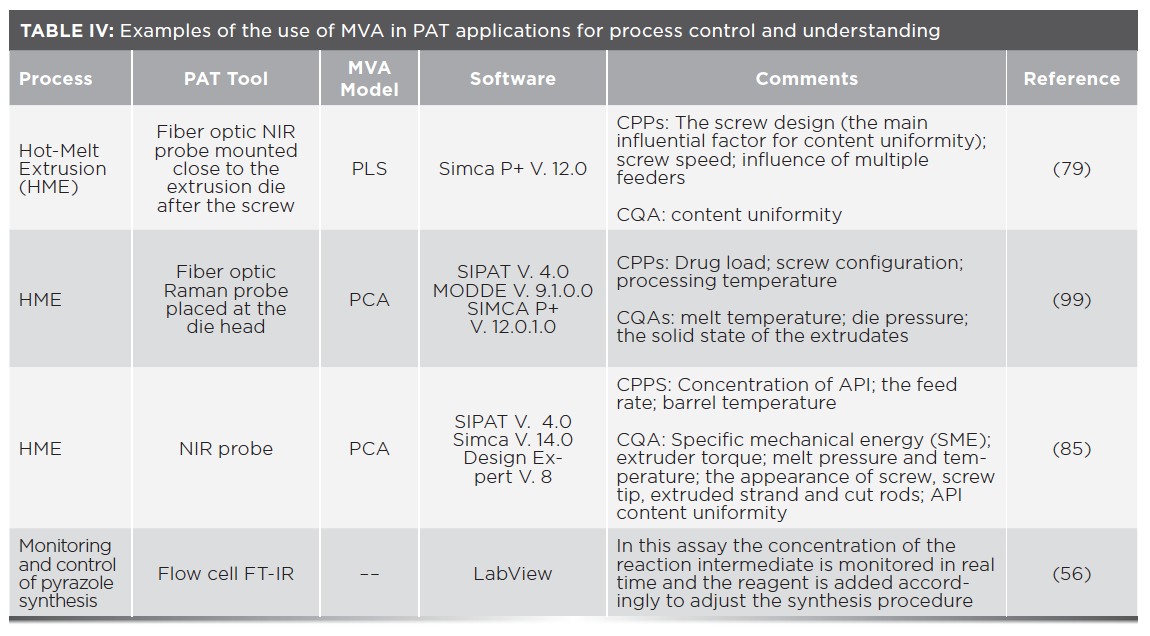

Process control is another benefit associated with MVA. A clear example of process control is given in the example of a HME process as part of a continuous solid dosage form production process (84). Extrusion is forcing molten material through a die under pressure. The extrudate leaves the die at high temperature and meets chilled rolls, causing its temperature to fall below its glass-transition temperature, leading the extrudate to form brittle glass sheets that are then ground down into smaller flakes for milling followed by blending, addition of excipients, lubrication, and compression into a final product. The HME process combines multiple steps (mixing, melting, degassing, and densification).

In this example FT-NIR spectroscopy was used to monitor form change, assay, and uniformity of the mixed substance (all CQAs) where the CPPs included temperature, mixing, and feed rate. If CQAs are not met, immediate automated discard of out-of-specification material occurs. Then the necessary CPPs are adjusted. This is controlled through a MVA model. If the same process had only monitored by final product inspection, all subsequent stages after the HME would have been completed, requiring that an entire batch of defective final product be discarded (84).

In another example, PAT was applied to evaluate and control a twin-screw HME process for continuous production of tamper–resistant tablets (85). NIR probes were used to monitor content uniformity assisted by PLS for data interpretation. Other CQAs were also monitored, as shown in Table IV. These data were used to control the process by changing CPPs such as barrel temperature or by diverting defective samples from the production line (85). Other important PAT chemometric models such as multivariate image analysis are described in detail in the literature (86).


A plethora of MVA algorithms exist. They encompass linear as well as nonlinear analytical models. Collectively, they represent a solution to many analytical challenges that encountered during pharmaceutical manufacturing. The application of MVA can reduce the cost and environmental hazards of sample preparation and organic solvent usage. A proposed scheme for selecting the optimal MVA model is provided (Figure 1).

MVA offers reduction of sample pretreatment and screening steps and allows the use of nondestructive analytical tools. It enables prediction and determination in nonlinear relationships, clustering into meaningful groups, accurate determination in multi-component samples, removal of instrumental noise, simultaneous determination of many analytes, and processing of overlapping spectra. Additionally, MVA can relate different CQAs with different CPPs and material parameters and allow adequate process understanding and real-time process adjustment and control. These attributes and capabilities make MVA a perfect match for PAT tools for the development and monitoring of pharmaceutical production processes.
