Specificity and the Net Analyte Signal in Full-Spectrum Analysis

Abstract

In multivariate spectral analysis, overlapping signals from multiple components often obscure the specific contribution of a target analyte. The Net Analyte Signal (NAS) is a theoretical and practical construct developed to isolate and quantify this unique contribution. NAS has become a fundamental tool for assessing sensitivity, selectivity, and signal-to-noise ratio (SNR) in chemometric modeling. Importantly, as the number and diversity of interferents increase in a dataset, the NAS component for an analyte typically shrinks, leading to lower signal strength and increased noise sensitivity. This has critical implications for constructing global versus local models. This tutorial presents the derivation of NAS in matrix notation, explores its role in improving specificity in PLS and PCR models, and discusses strategies for integrating NAS with modern data-driven techniques such as sparse regression and multi-block data fusion. The significance of NAS in quality control, process monitoring, and method validation is illustrated through practical applications.

Introduction

In multivariate spectroscopic calibration, overlapping spectra from multiple constituents often complicate the task of isolating signals for individual analytes. Classical univariate selectivity definitions fall short in multicomponent systems where collinearity is the rule rather than the exception. To address this, Lorber, Kowalski, and others introduced the concept of the Net Analyte Signal (NAS), a vector-based metric that isolates the part of the spectral signal that is unique to the analyte of interest (1–4).
NAS provides insight into the specificity and interpretability of multivariate models. Its framework allows us to decompose a measured spectrum into orthogonal contributions from the analyte, interfering components, and residual noise. NAS attempts to quantify how much of the measured signal is truly unique to the selected analyte of interest. (1).

Mathematical Formulation of the Net Analyte Signal

The Net Analyte Signal (NAS) is a method for extracting the portion of a signal that is uniquely attributable to the analyte of interest, independent of the effects from other chemical species or background interferences. This concept is critical in multivariate calibration, where spectral data is typically influenced by multiple overlapping components (1–4).

Why NAS?

In classical univariate calibration, the signal from a single analyte can be isolated at a specific wavelength. In multivariate systems, however, spectral overlap prevents this isolation. The NAS approach effectively projects out the interference contributions, leaving a residual component that contains information from the target analyte. Table I shows the various symbols used for NAS computation (1–4).

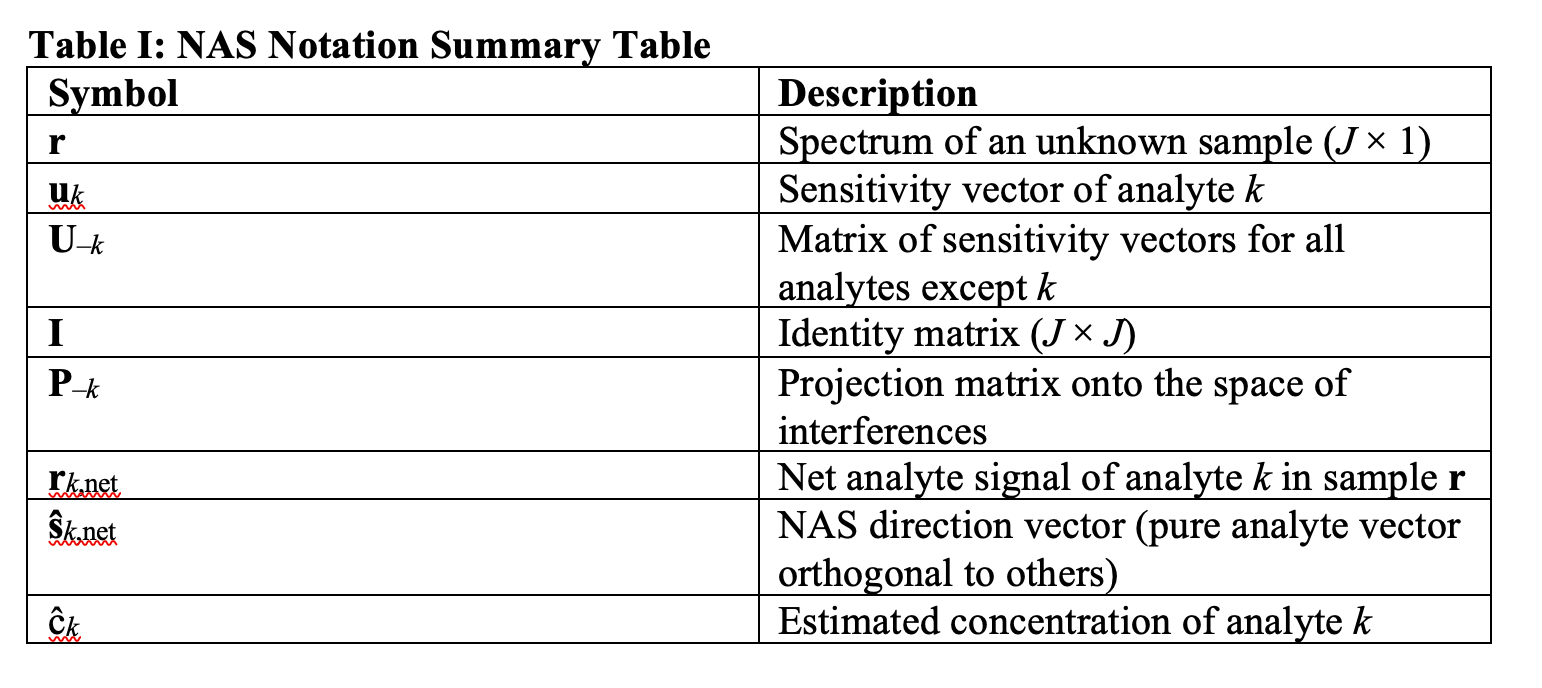

Mathematical Formulation

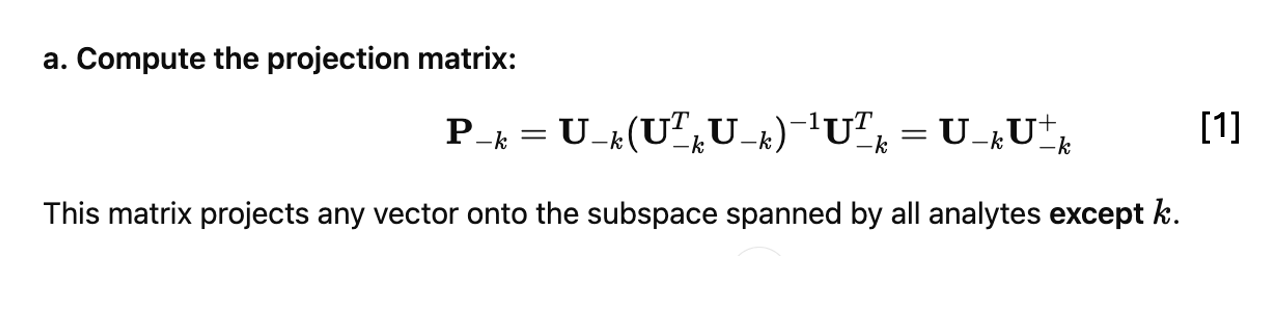

1. Project Out the Interference Space

To isolate the signal uniquely associated with analyte k, remove the components explained by other analytes.

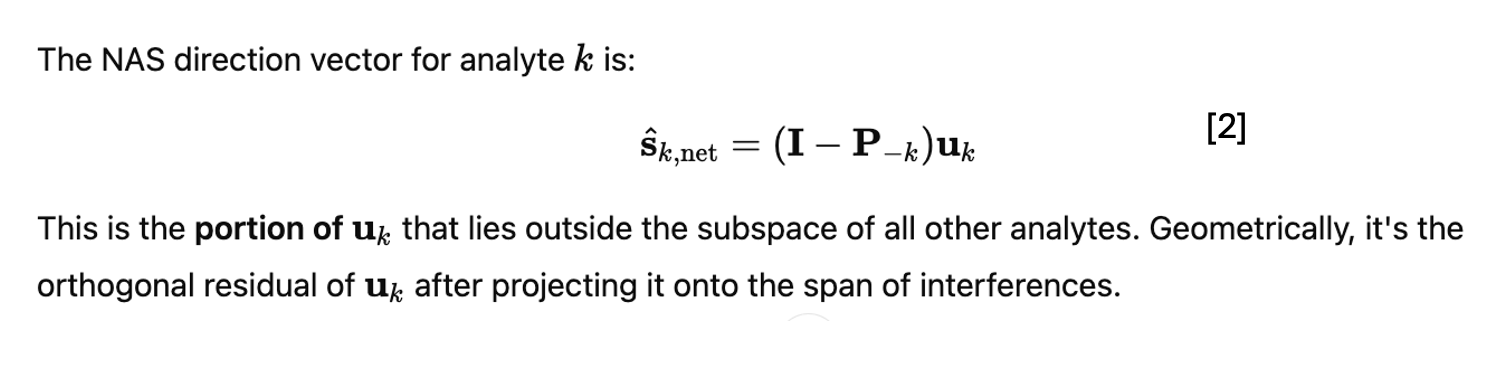

2. Compute the Net Analyte Signal Direction

As more interfering components are added to ŝ_k,net, the NAS vector may decrease in magnitude, eventually approaching the noise floor. This property is essential when evaluating the feasibility of global calibration models.

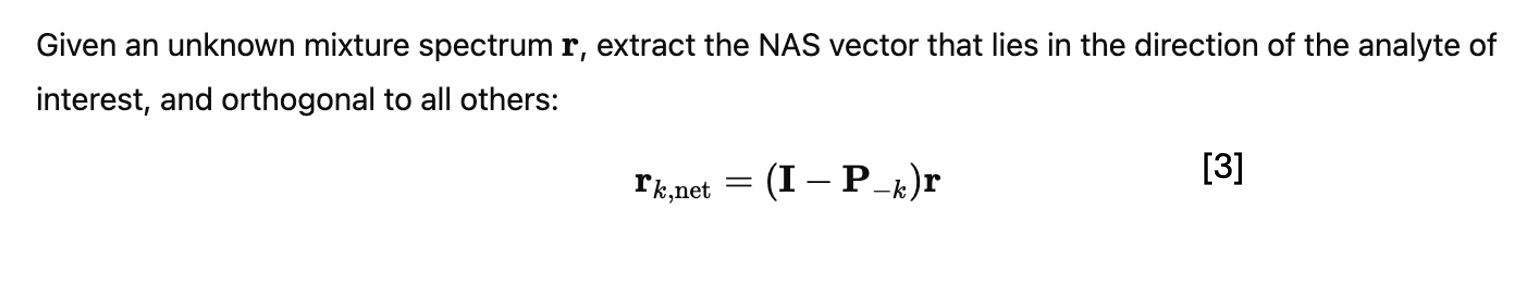

3. Compute the NAS Vector for an Unknown Sample

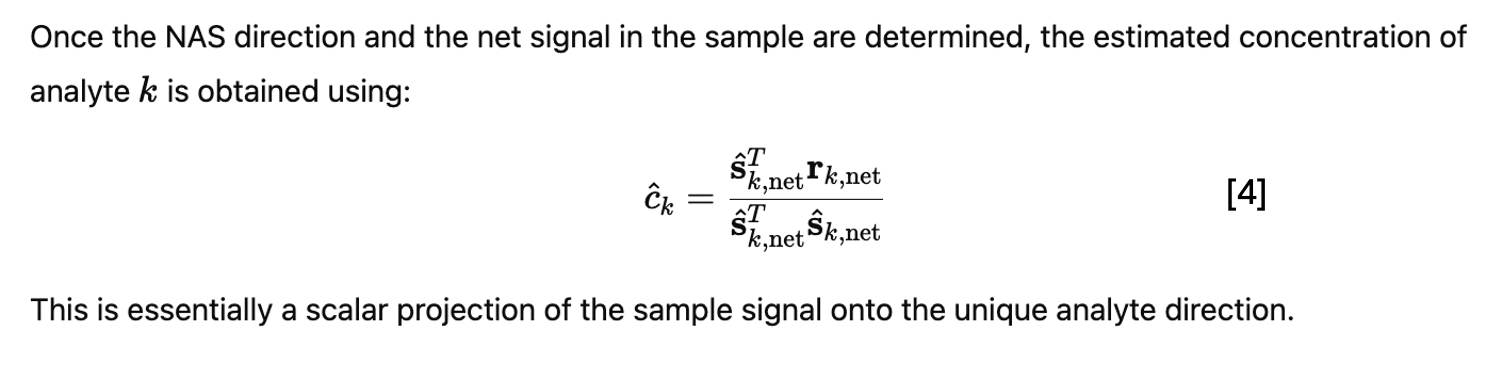

4. Estimate the Analyte Concentration

Interpretation

• The NAS method allows one to separate the contribution of analyte k from other overlapping signals without requiring complete orthogonality of spectra.
• NAS provides a foundation for sensitivity, selectivity, and limit of detection (LOD) analysis in multivariate calibration.
• Unlike CLS (classical least squares), the NAS estimate does not depend on knowledge of all analyte concentrations in a sample—only the spectral information is required.

Relation of NAS to Other Methods

• CLS uses full inverse modeling but fails when spectra are not linearly independent.
• PLS projects data into latent variables that maximize covariance, but does not explicitly isolate NAS.
• NAS is unique in that it provides a direct, interpretable, geometrically grounded estimate of analyte concentration, rooted in orthogonal projection theory.

Net Analyte Signal (NAS) Performance Metrics

The paper by Lorber, Faber, and Kowalski (1) defines three key analytical performance metrics derived directly from the Net Analyte Signal (NAS) formalism. Table II summarizes these NAS performance metrics (1–4).

1. Selectivity (SEL_k)

Selectivity quantifies how uniquely the analyte's signal stands apart from interfering components. It is defined as the cosine of the angle between the analyte signal and its NAS vector.

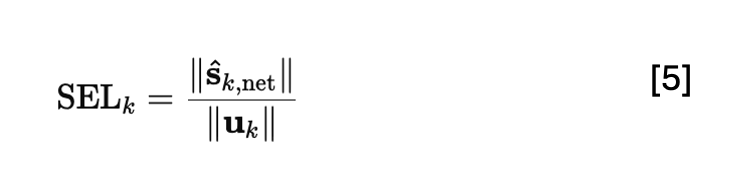

Formula:

Interpretation:

• SEL_k ​= 1: Perfect selectivity (no overlap with other components).
• SEL_k < 1: Some degree of spectral overlap with interferences.

This is a normalized projection, indicating how much of u_klies in its unique, interference-free subspace.

2. Sensitivity (SEN_k)

Sensitivity reflects the magnitude of the NAS response per unit concentration of analyte k. It's simply the norm of the NAS direction vector, assuming the analyte signal is linear with concentration. When SEN_k is small, even moderate noise levels can severely degrade prediction performance, guiding decisions on model scope and acceptable levels of interference.

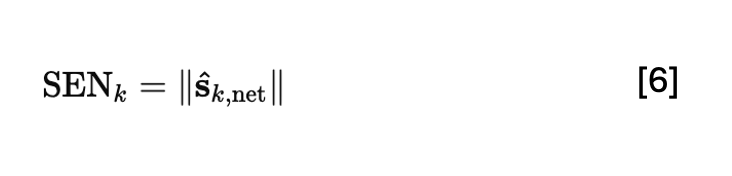

Formula:

Interpretation:

• Measures how strong the unique analyte signal is.
• A larger SEN_k means better signal resolution and higher detectability.

3. Limit of Detection (LOD_k)

LOD is defined as the minimum detectable concentration of analyte k, based on the level of noise in the measurement and the sensitivity of the system.

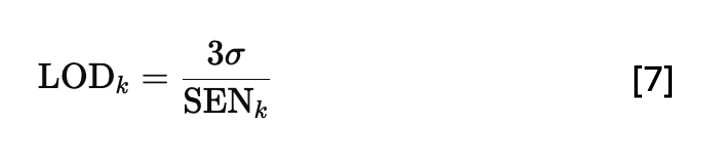

Formula:

Where:

• σ is the standard deviation of the instrumental noise, assumed to be orthogonal to the NAS subspace.
• The constant 3 comes from the typical criterion of signal-to-noise ≥ 3 for detection.

NAS in Multivariate Regression Models

1. Partial Least Squares (PLS) Regression Vector

Partial least squares (PLS) and principal component regression (PCR) derive predictive calibration models based on directions of maximum variance or correlation (5,6). These methods may achieve high predictive accuracy but can blur interpretability due to loading vectors that mix spectral analyte and interferent contributions.

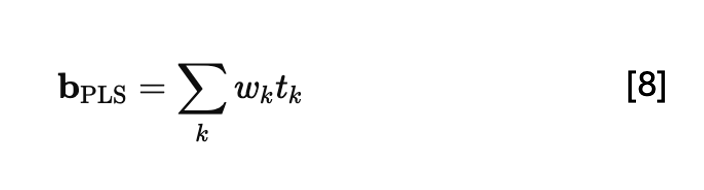

The PLS regression vector for analyte k is:

Where:

wₖ is the weight vector to latent variable k

tₖ is the latent variable score (component) for k

This equation implies that the PLS regression vector is a linear combination of component weight vectors and their associated scores.

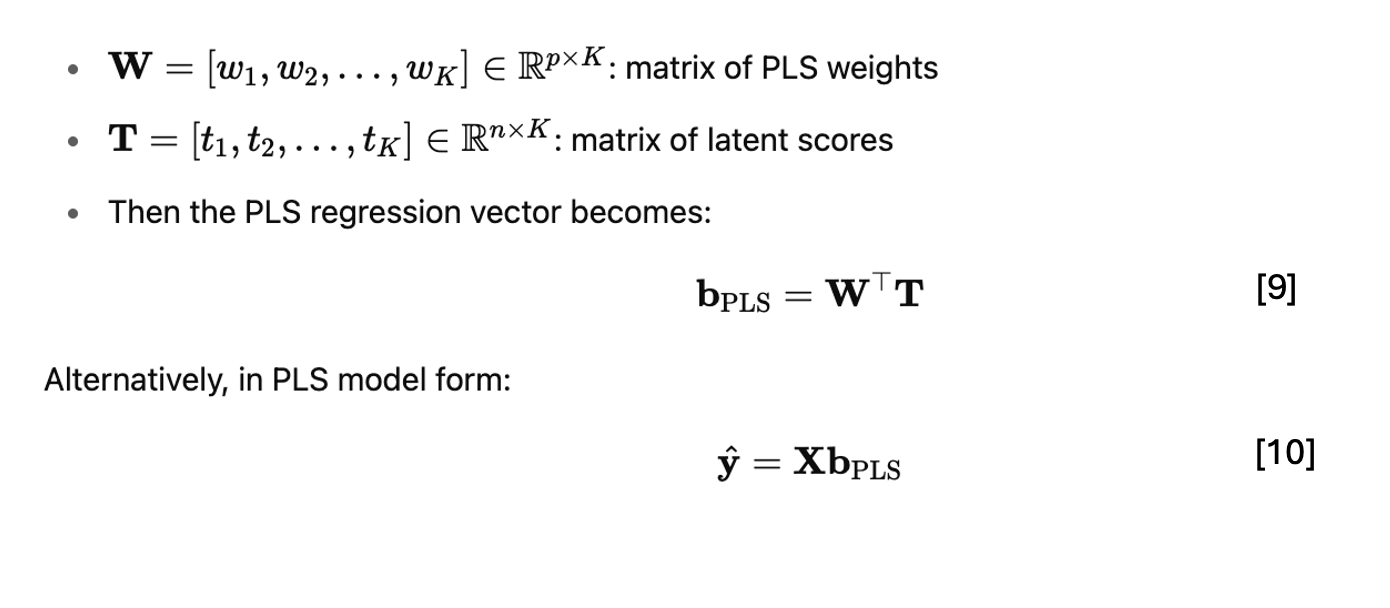

Matrix Form:

Let:

2. Net Analyte Signal (NAS) and Orthogonal Projection

Orthogonal Signal Correction (OSC) removes variation in X that is orthogonal to the response y. This improves specificity by filtering out unrelated interferents (1–6).

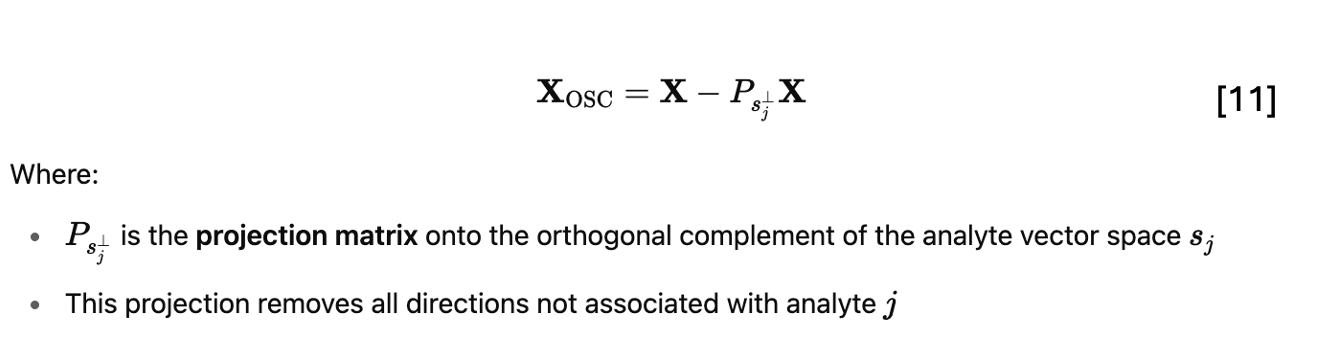

Standard Form:

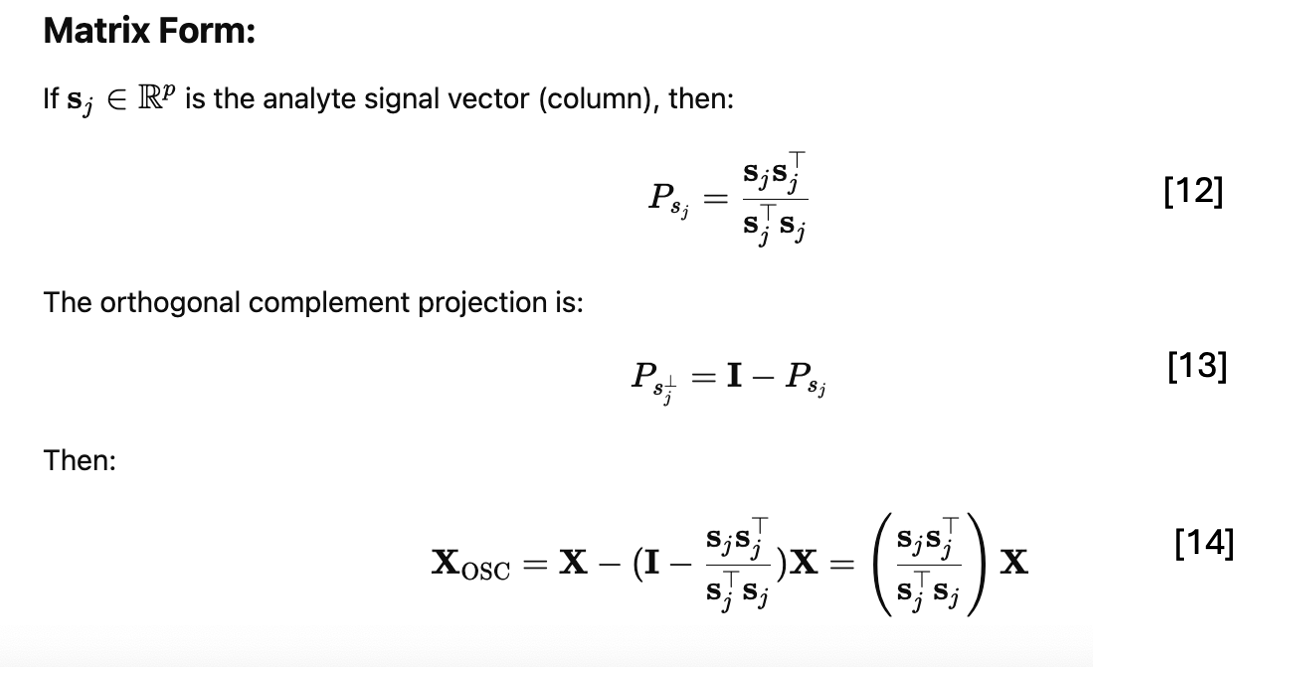

The orthogonal signal-corrected matrix (X_OSC) ​ is obtained by removing variation in Xorthogonal to the analyte signal space for analyte j in this case:

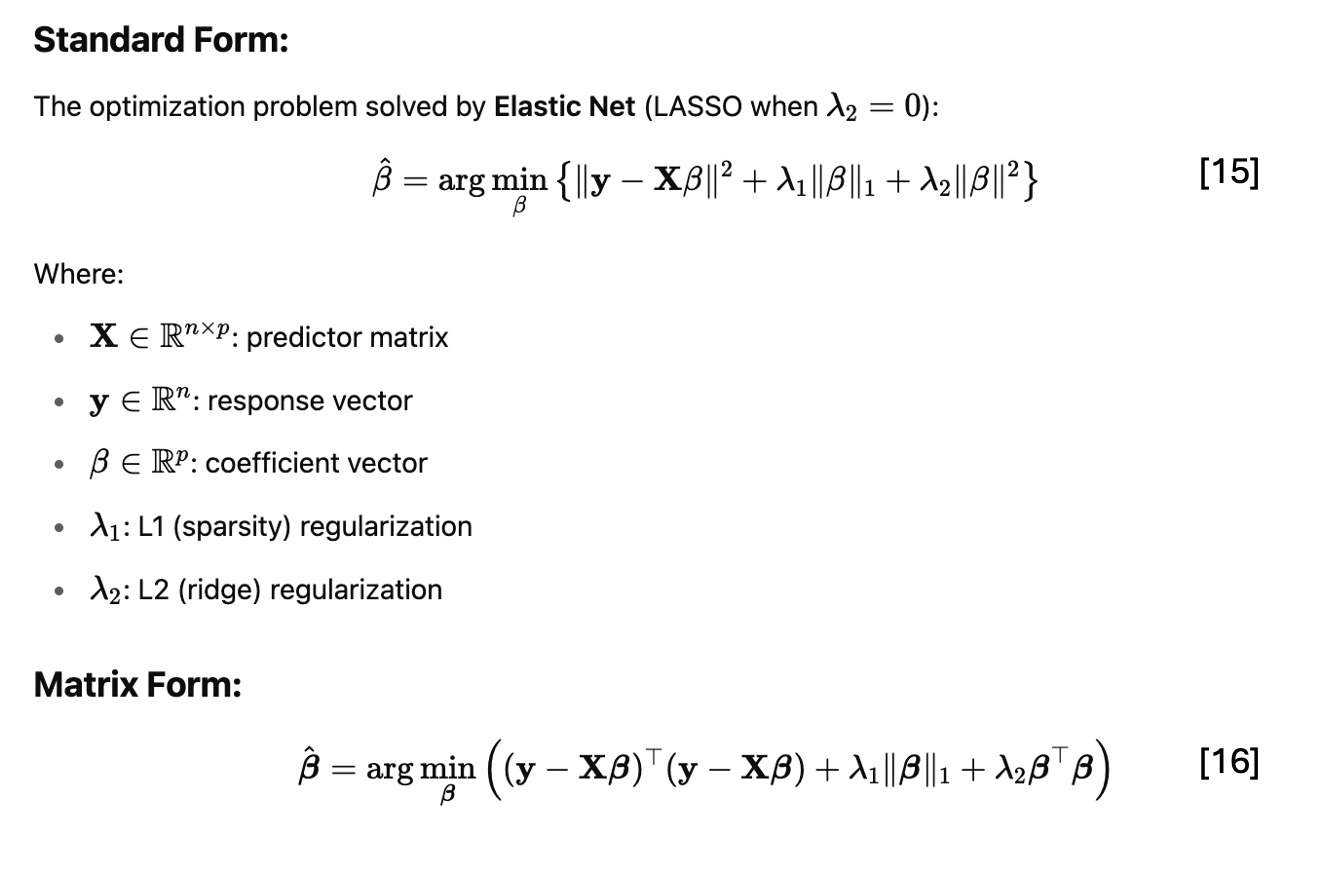

3. Sparse Modeling (LASSO / Elastic Net)

Sparse methods such as LASSO and Elastic Net enhance NAS by reducing collinearity and improving interpretability. These methods find solutions by minimizing interferences:

Discussion and Future Research

Why the Net Analyte Signal (NAS) Was Needed

In traditional spectroscopy, quantification of analyte concentration has relied heavily on either univariate calibration (for example, the Beer-Lambert law applied to a single wavelength) or multivariate methods such as principal component regression (PCR) and partial least squares (PLS). While these multivariate techniques improved prediction accuracy by leveraging entire spectra, they lacked explicit quantification of how much of the signal was truly attributable to the specific analyte of interest (1–4).

The key challenge arises when spectra exhibit significant collinearity—that is, spectral overlap—between analyte and matrix components. Under such conditions, regression methods often yield models that custom-fit a specific data set quite well but remain vulnerable to systematic bias or overfitting; thus do not provide a generalized solution. These models may also respond to variance from interferents rather than analyte-specific features, especially when different analyte concentrations are correlated in the calibration set.

To simplify the problem, think of a typical wet chemical reference method that measures a specific analyte of interest; if none of the analyte is present, a sound analytical method should yield none of that analyte as a result. When using spectra and multivariate analysis, there is typically an analytical result greater than zero for an analyte even when none is present.

Because of this serious specificity issue, there was (and is) a pressing need for a metric that would:

• Quantify the signal that is unique to an analyte (not confounded by interferences),
• Enable direct evaluation of the model specificity,
• Serve as a diagnostic tool for model robustness, especially in regulatory or clinical settings.

This was the gap that the Net Analyte Signal (NAS) concept was developed to address.

Research Origins and Development

The NAS concept was introduced and formalized in the 1980s and 1990s by Lorber, Kowalski, and co-workers (1,3). Their insight was to reinterpret the measured spectrum as a vector in multidimensional space and to partition this vector into three orthogonal components:

• The component in the direction of the analyte spectrum,
• The component within the subspace spanned by interferent spectra,
• The residual noise or error.

By constructing an orthogonal projection onto the complement of the interferent subspace, they mathematically isolated the "net" contribution of the analyte signal. This projection is conceptually akin to a “specificity filter,” separating shared (collinear) variance from unique variance.

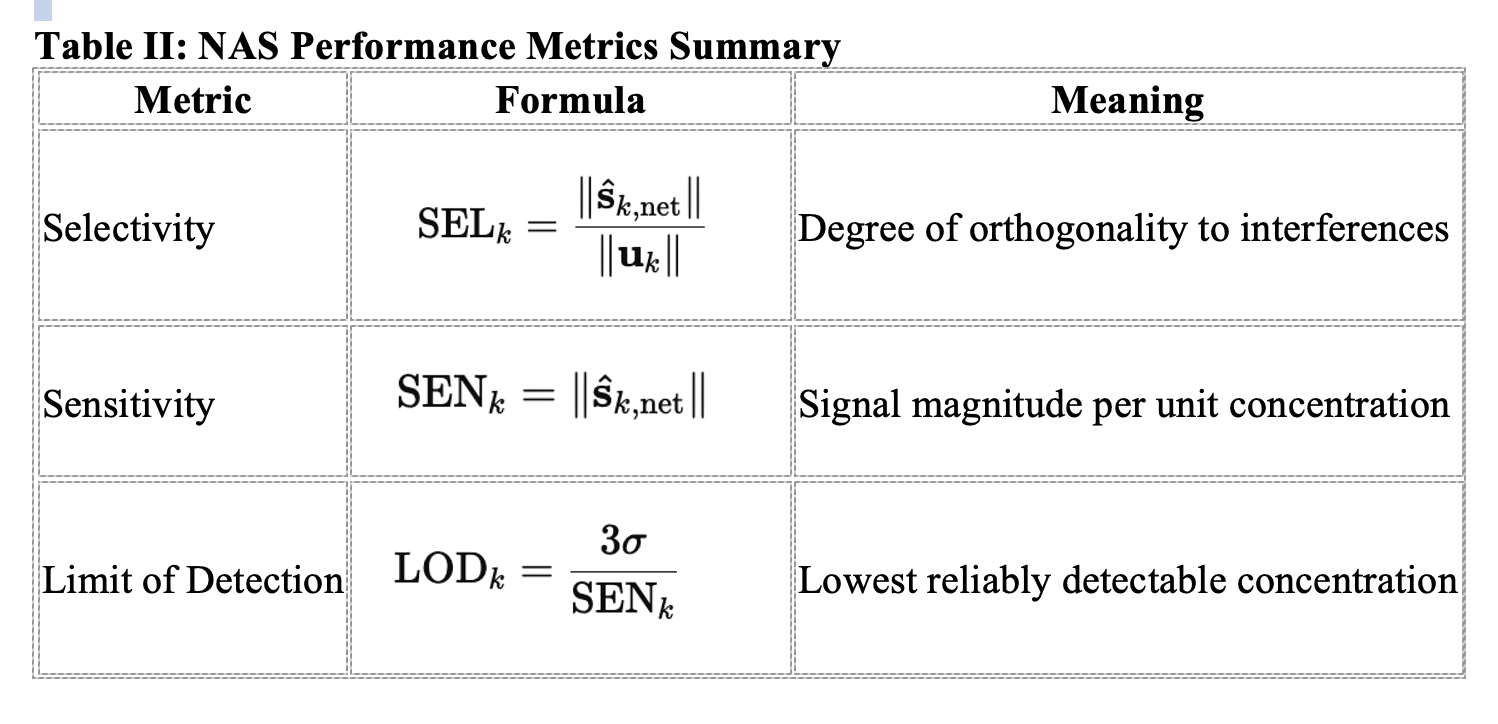

Later developments expanded the NAS theory to assess figures of merit (FOMs) described in Table II, such as (3):

1. Selectivity: the fraction of the total signal attributable to the analyte,
2. Sensitivity: derivative of response with respect to concentration,
3. Limit of detection (LOD): influenced by the NAS and instrumental noise.

The method was also extended to multiple analytes, multicomponent resolution, and wavelength selection strategies.

Effectiveness of the NAS Approach

NAS has proven to be a powerful and interpretable metric for:

1. Assessing analyte specificity in complex mixtures,
2. Diagnosing model overfitting or spectral confounding in PLS,
3. Optimizing wavelength selection, especially in variable selection for high-dimensional data,
4. Validating regulatory models, particularly in pharmaceutical and clinical applications.

In contrast to latent variable models, NAS provides a physically interpretable signal component and helps prevent reliance on coincidental correlations. For this reason, NAS-based validation is especially useful in:

1. Designing calibration sets,
2. Evaluating robustness across populations,
3. Estimating detection limits in quantitative assays.

Example Applications

The NAS method has been employed across a wide variation of analytical contexts:

1. Pharmaceutical Quality Control

1. Used in determining active pharmaceutical ingredients (APIs) amidst excipients in solid dosage forms (7).
2. Assists in evaluating the specificity of near-infrared (NIR) and Raman spectroscopic methods for regulatory submission.
3. By projecting spectra onto the NAS direction of the active ingredient, modelers can quantify the analyte independent of spectral overlap with excipients.

2. Clinical Chemistry

1. Applied to quantify biomarkers (e.g., glucose, lactate) in serum or blood using mid-IR or NIR spectroscopy.
2. NAS enables differentiation between analyte signals and biological matrix effects, crucial in point-of-care diagnostics.
3. NAS enables separation of biomarker signals from a background of varying biological interferences such as proteins, lipids, or metabolites.
4. NAS improves monitoring robustness by targeting signal vectors that are invariant to co-varying interferents in process streams.

3. Industrial Process Control

1. Enables real-time monitoring of multi-component blends in chemical reactors (8).
2. NAS allows for analyte tracking even in dynamically changing process streams where component interactions are high.

4. Food and Agricultural Analysis

1. Deployed in identifying specific adulterants in food matrices (e.g., melamine in milk).
2. Supports selective detection in complex natural matrices with overlapping signatures.

Future Research Directions

Despite its robust mathematical foundation, the NAS method continues to evolve as spectroscopy intersects with modern data science. Several emerging research directions include:

1. Integration with Deep Learning

While deep learning models can deliver high prediction accuracy, they often lack interpretability. Combining NAS with neural networks may enhance explainability by constraining models to NAS-derived subspaces. This can improve confidence in clinical or forensic applications.

2. NAS in Multi-Block Data Fusion

In systems where multiple data sources (e.g., NIR + Raman, or spectral + imaging) are available, NAS could help isolate analyte-specific features across blocks. Multi-block NAS formulations may improve diagnostics in omics, metabolomics, and environmental sensing.

3. Real-Time Adaptive Models

In adaptive calibration or model updating scenarios, NAS can guide selective retraining of the model by highlighting spectral regions where specificity has degraded. This could prove vital in wearable devices or embedded analyzers.

4. Sparse and Orthogonal Fusion

Modern trends favor sparse models for interpretability and robustness. NAS can be extended to sparse representations, allowing variable selection based on analyte specificity rather than regression weight alone. Orthogonal NAS components may also enhance interpretability in hybrid modeling.

5. Automated Variable Selection and Interpretability Tools

NAS can serve as a criterion for selecting variables (wavelengths or features) that are both predictive and specific to the analyte. Integration with recursive feature elimination or genetic algorithms could further improve model transparency and reduce overfitting.

Conclusion

Although the NAS makes a valiant effort to resolve analyte specificity in multivariate calibrations, a robust method to create models that are as specific to the analyte as univariate primary analysis methods that will pass regulatory scrutiny has yet to be developed and widely demonstrated.

References

(1) Lorber, A.; Faber, K.; Kowalski, B. R. Net Analyte Signal Calculation in Multivariate Calibration. Anal. Chem. 1997, 69 (8), 1620–1626. DOI: 10.1021/ac960862b

(2) Ferré, J.; Faber, N. K. M. Net Analyte Signal Calculation for Multivariate Calibration. Chemom. Intell. Lab. Syst. 2003, 69 (1–2), 123–136. DOI: 10.1016/S0169-7439(03)00118-7

(3) Lorber, A. Error Propagation and Figures of Merit for Quantification by Solving Matrix Equations. Anal. Chem. 1986, 58 (6), 1167–1172. PDF available at this link (accessed 2025-06-20).

(4) Ferré, J.; Brown, S. D.; Rius, F. X. Improved Calculation of the Net Analyte Signal in Inverse Multivariate Calibration. J. Chemom. 2001, 15 (6), 537–553. DOI: 10.1002/cem.647

(5) Haaland, D. M.; Thomas, E. V. Partial Least-Squares Methods for Spectral Analyses. Anal. Chem. 1988, 60 (11), 1193–1202. DOI: 10.1021/ac00162a020

(6) Wold, S.; Sjöström, M.; Eriksson, L. PLS-Regression: A Basic Tool of Chemometrics. Chemom. Intell. Lab. Syst. 2001, 58 (2), 109–130. DOI: 10.1016/S0169-7439(01)00155-1

(7) Rajalahti, T.; Kvalheim, O. M. Multivariate Data Analysis in Pharmaceutics: A Tutorial Review. Int. J. Pharm. 2011, 417 (1–2), 280–290. DOI: 10.1016/j.ijpharm.2011.02.019

(8) Wise, B. M.; Gallagher, N. B. The Process Chemometrics Approach to Process Monitoring and Fault Detection. J. Process Control 1996, 6 (6), 329–348. DOI: 10.1016/0959-1524(96)00009-1
