Gas chromatography–mass spectrometry (GC–MS) is considered the gold standard in forensic trace evidence analysis, because of its ability to chromatographically separate and analyze components in mixtures. Although two-dimensional GC–MS (GC×GC–MS) has been used extensively in the oil and petroleum and flavor and fragrance industries, it has not been fully explored in the forensic sector. However, forensic scientists often encounter highly complex samples that would benefit from the capabilities of GC×GC–MS, such as sexual lubricants, automobile paints, and tires. GC×GC–MS analysis can allow for the deconvolution of coeluted components, while providing increased sensitivity of minor components to help benefit any forensic laboratory.

	Gas chromatography–mass spectrometry (GC–MS) is a "go-to" analytical technique, primarily because of its versatility for isolating and analyzing different components in unknown mixtures, without requiring substantial method development for each new sample. This is the primary reason why GC–MS is the gold standard in the forensic analysis of trace evidence, such as ignitable liquids and drugs. However, there are limitations in using GC–MS for all unknown mixtures, because of the complexity of some of these mixtures. The primary limitation is coelution of the compounds in a mixture. This is where multidimensional gas chromatography (MDGC) can increase component separation with the potential to increase the sensitivity of compounds that may not meet the limit of detection in GC–MS. There are a few types of multidimensional gas chromatography configurations, all of which can be coupled to a mass spectrometer: comprehensive (GC×GC–MS) or heart-cut (GC–GC–MS). There are three types of commercially available MDGC–MS configurations: thermal modulation (TM), Deans switch (DS), and differential flow modulation (DFM). Discussions of TM and DS can be found in the literature (1,2). This article will discuss the use of the latter modulator for forensic trace evidence analysis to rapidly differentiate complex mixtures by observing the unique chromatographic "fingerprint" (3). These "fingerprints" are similar to a topography chart, which shows the trends of compounds that are chemically related; that is, normal alkanes and isoparaffins. As a result of increased sensitivity, this "fingerprint" shows both major components, as well as those minor components that may have been hidden as a result of coelution.

	GC×GC–MS systems have been used in the edible oil industry to investigate minor compounds (3,4), as well as the petroleum and biodiesel industries for rapid determination of the chemical formulation (5). However, the technique has yet to be evaluated for complex forensic evidence. This article discusses the use of GC×GC–MS for several forensic samples.

	Both GC–MS and GC×GC–MS analysis of the trace evidence samples were performed on the same GC–MS system, using the same column configuration. The GC system was a 7890B gas chromatograph, equipped with a split–splitless injector coupled to a 5977 quadrupole mass spectrometer (Agilent) (6).

	The pyrolysis analysis of automobile paint and tires used the same GC×GC–MS method from the lubricant analysis. However, to conduct pyrolysis of the sample, a Pryoprobe 4000 (CDS Analytical LLC) was used. The flash pyroprobe profile was started at 50 °C for 2 s, and then was ramped to 750 °C at 50 °C/s ,and held for 2 s. All samples were analyzed in their natural, unmodified state.

	A recent survey conducted by the National Center for Injury Prevention and Control revealed that approximately 1 in 5 women, and 1 in 71 men, will be sexually assaulted in their lifetime (7). Despite this staggering statistic, most criminal investigators primarily rely on DNA evidence to solve these crimes-from semen, skin cells underneath fingernails, or any other biological evidence. However, the use of condoms by sexual perpetrators has increased, primarily because they think that it will mitigate the deposition of semen at the crime scene or on the victim, thus preventing their identification based on DNA. A study by Nancy Ritter demonstrated that approximately 30% of sexual assault kits do not contain any probative DNA profiles for the perpetrator (8). This is where the forensic analysis of sexual lubricants can support the current analysis of sexual assaults. In the absence of DNA, lubricant analysis can provide another link between the perpetrator and the victim or crime scene. However, many lubricants are made from natural oils, which are comprised of many compounds that may be difficult to differentiate using traditional GC–MS.

	An example of a typical oil-based organic personal lubricant is one comprised of several organic butters (cocoa and shea), as well as vitamin E oil, beeswax, sweet almond oil, and even sunflower oil. Each of these oils and butters are comprised of many different oils and components themselves. Lubricant samples were prepared by hexane solvent extraction. Despite the fact that the oil-based lubricant only has six labeled ingredients, GC–MS analysis shows that there were more than the six labeled components, but there was a substantial amount of coelution between retention times (

s) of 7 and 20 min (Figure 1a). However, using GC×GC–MS analysis, more than 25 different components were readily observed. Between the 10 and 15 min first dimension retention times (FDRTs), several components were separated in the second dimension that were coeluted during GC–MS analysis (Figure 1a).

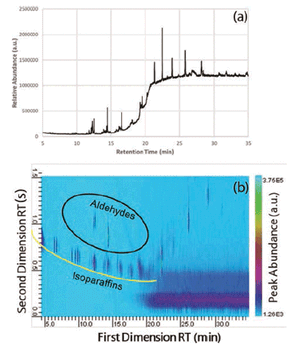

	Figure 1: (a) GC–MS and (b) GC×GC–MS of an oil-based lubricant.

	When compared to other natural oil-based or plant-based lubricants, the overall chromatographic profile is similar, but the differences are readily observed between the FDRTs of 7 and 17 min. Isoparaffinic compounds make up the lower arc of the early GC×GC profile (underlined in yellow) and the aldehydes are above (circled in black). Many of the heavier oils elute later on the first-dimension column, such as vitamin E oil. This oil is not readily observed in this sample, primarily because of the low concentration in the sample. Based on the analysis of other natural lubricants and lotions, vitamin E (also known as a-tocopherol) elutes off the second column adjacent to the column bleed located at the lower right-hand corner of the chromatographic plane. What is also immediately noticeable is the increased intensity.

	It was not immediately clear why there was a background shadow observed between first dimension retention times 20 to 35 min (lower right hand of Figure 1b). It is possible that this "shadow" was a result of either a column bleed from either the first-dimension or second-dimension column, considering the elevated oven temperatures at the end of the chromatograph run (280 °C).

	Automotive paint is a type of forensic evidence collected at car accidents, hit-and-runs, and any other crime involving a vehicle. This type of evidence is encountered frequently, and thus it is critical to improve current analytical techniques, as well as evaluate new options that could provide more information than current techniques can provide.

	Automotive paint is chemically complex because it is a multilayer system and different components are present in each layer. The four main components that make up automotive paint are pigments, additives, binders, and solvent. When automotive paint coatings are applied by the original equipment manufacturer (OEM), they are added in the following order: electrocoat, primer surfacer, basecoat, and clear coat. Each of the coatings have a different purpose with regards to the car's appearance. The electrocoat is used to prevent corrosion and the primer surfacer provides the car with a smooth surface. The basecoat determines the color of the vehicle, and the glossy finish is provided by the clear coat, which contains hindered amine light stabilizers and UV absorbers to protect the underlying paint layers from weathering and environmental effects (9).

	Currently, there are three techniques used to analyze automotive paint: microscopy, infrared (IR) spectroscopy, and pyrolysis (py)-GC–MS. Py-GC–MS has the most discriminating power among these three techniques, and can differentiate between samples with similar binders and pigments, not typically achievable with IR spectroscopy (10). The ability of py-GC–MS to discriminate between similar samples is significant, yet there is still room for improvement. Pyrograms of automotive clear coat samples analyzed using py-GC–MS have indicated that coelution occurs with certain compounds of interest; that is, toluene and 1,2-propandial, which can limit the ability to differentiate clear coats (10).

	To overcome the obstacle of coelution, py-GC×GC–MS was used to analyze automotive clear coats. To our knowledge, there is no literature published on the analysis of paints using py-GC×GC–MS. Increased separation of paint components is demonstrated using py-GC×GC–MS, especially for peaks that typically coelute in GC–MS. The two peaks around FDRT 11.6 min (Figure 2b) illustrate the improved separation that is achieved in py-GC×GC–MS. α-methylstyrene (11.776 min FDRT) and n-butyl methacrylate (11.600 min FDRT) would normally coelute in the first column. However, the second column allows the two peaks to be distinguished from one another. With additional method development, we aim to increase the separation of clear coat peaks.


	Figure 2: (a) Cross-section of automotive paint system, (b) Py-GC×GC-MS profile of the clear coat.

	Much like automotive paint, traces of tire rubber are often encountered on road surfaces or on the victim of automotive-related incidents, such as hit-and-run accidents. The forensic analysis of tire evidence is useful to investigators, specifically when attempting to reconstruct vehicle trajectories, velocities, and dynamics in incidents (11). Tire impressions from a crime scene are routinely compared to the tread pattern of tires from the suspect vehicle. However, in many instances the impression may be of poor quality, which is when the chemical analysis of the rubber traces may help to provide investigative leads. The physiochemical complexity of trace tire particulates makes the characterization of this evidence challenging and time-consuming. Py-GC–MS is the technique primarily used by forensic scientists for the chemical analysis of tire evidence (12,13). The pyrograms from rubber traces obtained from the tire impressions can then be compared to the tire from a suspect vehicle. Tires are extremely chemically complex, often containing over 200 components, including natural and synthetic rubber, oils, plasticizers, antioxidants, antiozonants, accelerators, vulcanizing agents, and curing systems (14). This chemical complexity can result in coelution of components, which may prevent a correct match and lead to significant errors.

	A flash pyrolysis method was used to pyrolyze a small portion (~50 µg) of the main tread of a Firestone Destination LE tire. Multidimensional separation of the pyrolysates was performed, and the resultant GC×GC plot is presented in Figure 3. The complexity of tire samples makes identification of the individual components difficult using one-dimensional py-GC–MS. Py-GC×GC–MS was able to differentiate many components in the second dimension, which is beneficial to eliminate the ambiguity in making comparisons, and improves match determinations and reduces errors, which is imperative in forensic investigations.


	Figure 3: Py-GC×GC–MS profile of a tire sample.

	With complex mixtures commonly encountered in forensic trace analysis, it is necessary to start evaluating techniques other than GC–MS. The use of GC×GC–MS or py-GC×GC–MS provide the forensic community with a new methodology that can achieve such separation. This could be the next frontier for increasing the actionable intelligence that forensic laboratories provide the criminal investigation system.

	The authors would like to thank Drs. Matthieu Baudelet and Mauro Martinez from the National Center for Forensic Science for their assistance on the tire project. The lubricant analysis research was funded by the National Institute of Justice [Award: 2016-NE-BX-0001]. The automobile paint research was supported by the American Academy of Forensic Science's Forensic Science Foundation Lucas Grant.

	(1) M. Adahchour, J. Beens, R.J.J. Vreuls, and U.A.T. Brinkman,

	(2) K.M. Sharif, S.-T. Chin, C. Kulsing, and P.J. Marriott,

	(3) G. Purcaro, L. Barp, M. Beccaria, and L.S. Conte,

	(4) M. Biedermann, A. Bongartz, C. Mariani, and K. Grob,

	(5) S. Castillo, I. Mattila, J. Miettinen, M. Oresic, and T. Hyotylainen,

	(7) M.C. Black, K.C. Basile, M.J. Breiding, S.G. Smith, M.L. Walters, M.T. Merrick, J. Chen, and M.R. Stevens,

The National Intimate Partner and Sexual Violence Survey (NISVS): 2010 Summary Report. N.C.f.I.P.a. Control

 (Centers for Disease Control and Prevention, Atlanta, Georgia, USA, 2010), pp. 17–26.

	(9) E.A. Liszewski, S.W. Lewis, J.A. Siegel, and J.V. Goodpaster,

	(10) J. Zieba-Palus, G. Zadora, J.M. Milczarek, and P. Koscielniak,

	(11) M.B., H.-g. Xu, Y. Chen, and M.-y. Lin,

The Composition of a Tyre: Typical Components

(The Waste & Resources Action Programme, Banbury, United Kingdom, 2006).

 is an assistant professor in the department of chemistry and a research professor at the National Center for Forensic Science at the University of Central Florida.

 is a postdoctoral associate at the National Center for Forensic Science.

 is a graduate student at the University of Central Florida, and conducts automobile paint analysis at the National Center for Forensic Science. Direct correspondence to:

Articles

Forensic scientists often encounter highly complex analytical problems related to crime scenes that would benefit from the capabilities of GC×GC–MS. However, this technique has not been fully explored to help benefit forensic laboratories.

GC×GC–MS for Forensic Analysis

With the common knowledge of DNA and fingerprints being used as trace evidence in casework, many perpetrators attempt to mitigate the transfer of such evidence at a crime scene. However, since close personal attacks are common, it is necessary to account for the potential lack of such evidence that may associate a suspect to a crime scene by considering other potential evidence. One type of evidence that is commonly overlooked by offenders is that of cosmetic transfer. Specifically, glitter components from cosmetic products may potentially transfer from or onto an offender, the crime scene, or the victim. In this study, 36 glitter samples were analyzed using attenuated total reflectance–Fourier transform infrared spectroscopy (ATR–FT-IR) in an attempt to develop a characterization scheme to aid in the identification of glitter particles that may transfer during personal assaults. Samples were separated into six classes based on chemical composition, and various statistical methods were used to determine the potential to classify glitter particles. Results of the developed scheme showed great accuracy, with at least 99% classification rates using three cross validation models. The developed classification model provides a basis for further identification of unknown glitter samples collected from a potential crime scene.

	Close personal assaults, unfortunately, are quite common. According to the Bureau of Justice Statistic's National Crime Victimization Survey conducted in 2016, 2.11% of U.S. residents aged 12 or above have experienced a violent crime, including sexual assault or rape, robbery, and aggravated assault (1). The National Center for Injury Prevention and Control also reported in a recent survey that about one in three women and one in six men are exposed to some form of contact sexual violence throughout their lifetime, where a sexual assault is committed against a person without their given consent (2). Since many offenders are aware of common trace evidence such as DNA and latent prints, they try to mitigate the transfer of these types of evidence at the crime scene. Cosmetic transfer is an emerging concept in the trace evidence field, and perpetrators are not typically mindful of cosmetics when committing a crime. Many cosmetic products contain glitter particles that potentially transfer from or onto an offender, victim, or crime scene. Accordingly, development of a glitter characterization scheme is necessary to aid in identification of unknown particles collected from assault cases that involved cosmetic transfer.

	Glitter is comprised of tiny pieces of metallic foil or plastic, and has been previously studied for its use as trace evidence as a way to show that contact occurred (3,4). Glitter has been analyzed using white light microscopy, Fourier transform infrared spectroscopy (FT-IR), Raman spectroscopy, and gas chromatography–mass spectrometry (5–8). Most of these studies illustrated the usefulness in identification of glitter. Blackledge and associates showed that cosmetic products readily transfer at least one glitter particle during contact (5). This illustrates the importance of understanding the impact cosmetic transfer can have in close contact situations, and why it is necessary to characterize glitter samples.

	FT-IR is one of the most commonly used techniques in forensic analysis. Recent studies have incorporated FT-IR techniques to detect fingerprints contaminated with various cosmetics (9). Gordon and colleagues examined the ability to discriminate 53 different cosmetic foundations based on FT-IR spectral differences, and claimed 98.3% discriminating power (10). Although glitter has already been studied, researchers that used FT-IR analysis have mainly focused on either a few glitter particles or a single color of glitter samples (4, 6, 11). Gross and associates analyzed 37 different particles using FT-IR, but all were red in color (11).

	Furthermore, little research has been conducted on glitter using attenuated total reflectance-FT-IR (ATR–FT-IR). Limitations of ATR include small penetration depth of the evanescent wave into the substrate, making the technique only best used for surface or thin film measurements (12). For ATR, penetration depth is wavelength dependent, causing difficult spectral interpretation due to increased peak intensities with increasing wavelength (13). Despite these drawbacks, ATR is more suitable over transmission IR for examination of glitter, because samples can be analyzed in their natural state, without the requirement of grinding particles or pressing them into pellets (14–16). Thus, the sample preparation technique is non-destructive; glitter particles are simply placed in contact with the crystal and analyzed (3,4,16). Additionally, this technique is insensitive to sample thickness (17,18). These are all significant advantages of using ATR for glitter analysis, especially if only a minimal amount of sample was located at a crime scene.

	This study focused on the classification of different colors and types of glitter using ATR–FT-IR, along with statistical analysis of a developed characterization scheme. The research presented herein places emphasis on glitter used in cosmetic industries, whereas other studies have primarily considered those used in crafts and clothing (11). The generated scheme may aid in forensic evidence analysis and provide identification information for glitter transferred between people or found at a crime scene.

	Thirty-six glitter samples were purchased from Glitterex Corporation for this study. Samples had similar and different physical characteristics, including thickness, chemical formulation, size, and morphology. The sample set consisted of nine colors and eight types of hexagonal particles (Table I). Liquid nitrogen was purchased through Air Liquide (Houston, TX, USA).

	Glitter samples were analyzed using a Bruker LUMOS FT-IR system (Bruker Optik GmbH, Ettlingen, Germany) equipped with a Germanium ATR crystal. The microscope uses an 8x objective for high quality visual analysis of substrates, and is coupled to a liquid nitrogen cooled mercury-cadmium-telluride detector.

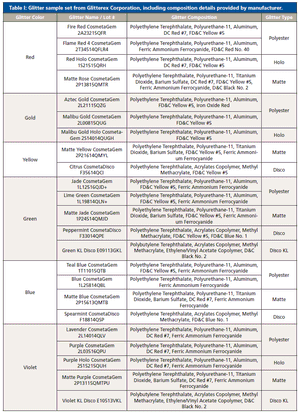

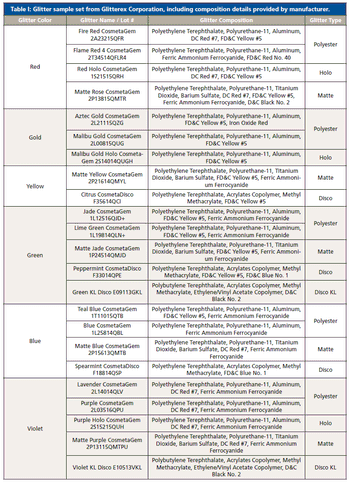

	Table I: Glitter sample set from Glitterex Corporation, including composition details provided by manufacturer. (continued)

	FT-IR spectra in the mid-IR range 4000–600 cm

 were obtained in ATR mode. Twenty spectra were collected per sample with 4.0 cm

 resolution and 64 scans per position, resulting in an acquisition time of approximately 15 min. Background spectra of air were collected using the same parameters. Due to the soft nature of glitter, the low ATR pressure mode was used for contact between the ATR crystal and the sample. Measurements were taken at two positions for each of 10 different particles per glitter sample. Each particle was placed flat on double-sided tape, which prevented particles from being picked up or shifted by the crystal. Since glitter is stratigraphic and ATR is a surface sensitive technique, characterization was based on the surface layer of particles.

	Data processing was performed using OPUS 7.2.139.1294 (Bruker Optik GmbH, Ettlingen, Deutschland) for extended ATR correction, baseline correction, and min-max normalization of all 720 measurements. The spectra were truncated from 600 to 3200 cm

, because no significant peaks were observed above that range. The resulting spectra were exported from OPUS as data text files, and imported into a data matrix for chemometric analysis.

	Statistical analysis of the model dataset was completed with R-3.4.1 software (R Project, Inc., Boston, MA, USA). Hierarchical cluster analysis (HCA), principal component analysis (PCA), linear discriminant analysis (LDA), k-nearest neighbors (KNN), support vector machines (SVM), and heat map generation were all performed using the R program. Origin 2016 64-bit Sr2 b9.3.2.303 (OriginLab Corporation, Northampton, MA, USA) was used to generate spectra and plots of the data.

	HCA was first performed to generate a dendrogram using the Ward's linkage and Euclidean distance methods. A corresponding heat map helped verify the number of groupings. PCA was then used with the covariance method to understand why samples clustered together in HCA. A stratified 20% withheld, tenfold cross-validation LDA model was performed using the first four PCs that accounted for > 90% of variance. The model randomly extracted 20% of the data as the test set, and computed the classification model using the remaining 80% of the data as the training set. Different cross-validation models were used to determine a comprehensive evaluation of the classification scheme and this procedure was repeated with the same training and test models for KNN and SVM. The KNN model used 5 nearest neighbors (K = 5), and the SVM model used a radial basis kernel function with cost = 10 and gamma = 1x10

 to achieve the optimal hyperplane for maximum separation between classes (19).

	The dendrogram helped identify major groupings based on the chemical formulations of the glitter samples. Using the HCA clustering and heat map, the dataset was separated into six different classes (Figure 1). PCA was subsequently performed on the glitter dataset to define the discriminating IR bands responsible for the HCA clusters. The first four principal components (PCs) accounted for 91.2% of the variance within the dataset. Two three-dimensional (3-D) scores plots were generated using PCs 1, 2, and 3, and PCs 1, 2, and 4 to visualize the structure of the dataset (Figure 2a-b).


	Figure 1: Dendrogram and heat map showing the six distinct clusters obtained using the FT-IR spectra. The classes are labeled at the far right with colors corresponding to the PCA scores plots and IR class spectra.

	Loadings plots for PCs 1–4 (Figure 2c–f) identified the key vibrational stretches that allowed for the discrimination of samples into six classes. The PC1 plot (Figure 2c) indicated significant positive factor loadings corresponding to IR vibrations at 1268 and 726 cm

, and significant negative loadings for 2922, 1736, 1699, and 1540 cm

. All FT-IR spectra showed the presence of ester C-O bonds between 1300-1000 cm

 was highest for class 3 samples, as depicted by the representative IR spectra for each class (Figure 3). The 726 cm

 band represents the aromatic C-H stretches, which were present with higher absorbance values in classes 1 and 3, and not present in class 5. The peak at 2922 cm

 was observed in classes 1, 2, 4 and 6, corresponding to aliphatic C-H stretches. In class 5, these bands were shifted closer to 2990 cm

, due to presence of acrylates in the glitter formulation. The 1540 cm

 signal denoted the aromatic C=C bonds coming from either polyethylene terephthalate (PET) or polybutylene terephthalate (PBT).


	Figure 2: Three-dimensional PCA scores plots generated using (a) PCs 1, 2, and 3 and (b) PCs 1, 2, and 4. (c-f) Factor loadings plots for PCs 1-4 showing IR bands corresponding to significant positive and negative loadings.

	Significant differentiating peaks in PC2 were 2086 and 1264 cm

 peak corresponding to C=N bonds indicated the presence of ferrocyanide (classes 4 and 6), and 1264 cm

 indicated the presence of C-O ester bonds (20, 21). In PC3, the positive loadings were due to vibrations at 1733 and 1148 cm

, which specified the carbonyl C=O and the ester C-O bonds from the polymeric makeup of the glitter particles, respectively. The major negative loadings stretches in PC3 were 1715, 1262, 1099, and 726 cm

 peak was also from the ester C=O bond, however this shift was only observed in class 3 samples. The 1099 cm

 band indicated the corresponding ester C-O bond (20).


	Figure 3: (a-f) Representative ATR FT-IR data showing spectral differences between classes 1-6.

	The factor loadings for PC4 showed additional discrimination with positive correlations for 2931 (all classes except classes 3 and 5), 1713 (class 3), and 1530 (all classes) cm

. The negative loadings indicated significant peaks at 1727 (all classes except class 3), 1436, 1148, and 828 cm

 signified the aromatic C=C bonds. The signal at 1436 cm

 was observed in class 5 samples alone, and the peak at 1148 cm

 was sharpest in class 5, both potentially indicated that Disco KL and Disco LR glitter were comprised of PBT, whereas all other samples contained PET. The 828 cm

 peak was observed in class 2 alone, and represents aromatic C-H out-of-plane bends (20).

	Based on the information gathered from HCA and PCA, a characterization scheme was developed for the six classes of glitter samples (Table II). Sample classification was based on the presence and ratio of specific functional groups. Each class had spectra that were visually different from other classes, and thus visual inspection aided the development of the characterization scheme. Class 1 and 2 spectra look similar, but absorbance intensities differed in the 3000-2850 cm

 (aliphatic C-H stretches) and 1600-1000 cm

 ranges. As opposed to other classes, ester C=O peaks in classes 3 and 5 were sharper, and may be best explained by the addition of methyl methacrylate to the chemical formulation (21). Classes 4 and 6 differentiated due to the presence of ferrocyanide (2086 cm

). The absorbance of the ferrocyanide peak at 2086 cm


	Table II: Glitter classification scheme showing samples grouped together into six classes and the corresponding IR peaks/ranges observed for each class. Descriptions of the IR peaks are shown in parentheses. The * denotes the base peak.

	The model dataset was tested using three different cross validation models: LDA, KNN, and SVM. The classes obtained from HCA and PCA were used to train the models. Since the three algorithms used are supervised methods, misclassified sample replicates in HCA were classified within the majority group, and then the updated classification model was used as the training dataset. For instance, Fire Red CosmetaGem identified by HCA as class 1, however one replicate was grouped into class 2 and was treated as class 1 in the training datasets. This was repeated for a few replicates of samples Maroon-Fuchsia CosmetaGem and Matte Fuchsia CosmetaGem, where all misclassified replicates were changed from class 2 to class 1.

	LDA analysis resulted in a 99.24% classification rate, with 11 misclassifications observed for four samples: Neon Ice Pink, Lavender, Fire Red, and Malibu Gold Holo. Misclassifications occurred between classes 1 and 2 and classes 1 and 4. By examining the heat map, it is apparent that these three classes have similar IR spectra (Figure 1), with the exception of absorbance intensities and the additional ferrocyanide peak in class 4. KNN gave 100% characterization, and SVM had only one misclassified sample, resulting in 99.31% classification accuracy (Table III). The misclassification was not surprising, because the Neon Ice Pink sample (class 2) was predicted as class 1, and samples within these two classes have similar chemical composition, as depicted by the heat map and comparable representative spectra.


	Table III: Confusion matrices obtained using LDA, KNN, and SVM. The misclassifications are shown in red.

	Cross-validation using the aforementioned algorithms indicated that there was little overlap in the defined classes, and thus it can be concluded that the overall performance of the classification scheme is highly discriminating. These highly accurate results showed that it is possible to classify unknown glitter samples with little ambiguity and that ATR–FT-IR is capable of distinguishing between glitter particles using polymeric composition that may not be discriminated using other techniques, i.e. microscopy. This is in opposition of results presented by Gross and colleagues, which deemed scanning electron microscopy-energy dispersive x-ray spectroscopy (SEM–EDS) hardly useful for the characterization of polymeric glitter layers based solely on the elemental composition (11).

	Glitter samples were classified using ATR–FT-IR spectroscopy. A classification scheme was successfully developed and validated using multivariate statistical techniques. The set of 36 glitter samples were classified into six groups based on the presence and/or relative ratios of specific functional groups. The developed scheme will help identify and classify unknown cosmetic glitter components collected after close personal assaults with high accuracy, as observed with the high characterization rates of LDA, KNN, and SVM models. Future studies will include analyzing real-world cosmetic products to determine the classification potential of transferred glitter particles. This work may provide a framework to assist in analysis of cases in which cosmetic trace evidence remains after theft, sexual assault, or even car accidents.

	This research was supported by the National Institute of Justice (Grant No. 2017-R2-CX-0005) and the State of Florida.

	(1) R.E. Morgan and G. Kena,"Criminal Victimization, 2016," Bureau of Justice Statistics (NCJ 251150),

https://www.bjs.gov/content/pub/pdf/cv251116.pdf.

	(2) S.G. Smith, K.C. Basile, L.K. Gilbert, M.T. Merrick, N. Patel, M. Walling, and A. Jain,"National Intimate Partner and Sexual Violence Survey (NISVS): 2010-2012 State Report," National Center for Injury Prevention and Control,

https://www.cdc.gov/violenceprevention/pdf/NISVS-StateReportBook.pdf

	(3) R.D. Blackledge, presented at the Trace Evidence Symposium sponsored by the NIJ and the FBI, Clearwater Beach, Florida. [Available on the Internet at:

http://projects.nfstc.org/trace/docs/final/Blackledge_Glitter.pdf

Forensic Analysis on the Cutting Edge: New Methods for Trace Evidence Analysis

(John Wiley and Sons, Hoboken, New Jersey, 2007), pp. 1–32.

	(5) K. Aardahl, S. Kirkowski, and R.D. Blackledge,

	(6) L. Vernoud, H.A. Bechtel, M.C. Martin, J.A. Reffner, and R.D. Blackledge,

	(7) M. López-López, J. Vaz, and C. García-Ruiz,

	(11) S. Gross, K. Igowsky and E. Pangerl,

	(13) C. Hughes, M. Brown, G. Clemens, A. Henderson, G. Monjardez, N.W. Clarke and P. Gardner,

	(14) M.M. Beasley, E.J. Bartelink, L. Taylor and R.M. Miller,

FTIR Spectroscopy: Attenuated Total Reflectance (ATR)

https://www.utsc.utoronto.ca/~traceslab/ATR_FTIR.pdf

FTIR Sample Techniques: Attenuated Total Reflection (ATR)

	(19) R.A. Nugrahaeni and K. Mutijarsa, 2016 International Seminar on Application for Technology of Information and Communication (ISemantic),163–168 (2016).

	(20) D.L. Pavia, G.M. Lampman, G.S. Kriz and J.A. Vyvyan, in

	(21) Spectral Database for Organic Compounds SDBS:

 (National Institute of Advanced Industrial Science and Technology, 15 May 2018).

 are with the National Center for Forensic Science and the Department of Chemistry at the University of Central Florida in Orlando, Florida. Direct correspondence to:
