Li Zhong

To enhance the process analysis robustness of an ethylene analyzer based on tunable diode laser absorption spectroscopy (TDLAS), an extreme learning machine (ELM) model is tailored through genetic algorithm (GA) parameter searching, activation function selection, and sample dataset rotation. Particularly, two robustness issues are the inaccurate gas concentration measurement caused by the variation in gas background components, and the inaccurate spectra shift calculation caused by spectral interference. Using our applied algorithm, the concentration calculation error was reduced by one order of magnitude. Additionally, it was shown that, with our algorithm, the wavelength shift calculation accuracy was improved to less than 1 count over 1000 counts spectra length with methane spectral interference. To test the viability, the algorithm was implemented in trace ethylene (C

) measurement with the coexistence of interfering methane, and the experimental measurements supported the robustness enhancement effect.

Being a highly-sensitive, selective, fast, non-destructive, and in situ method, tunable diode laser absorption spectroscopy (TDLAS) has gained popular acceptance for trace gas measurement in various industries. Its uses include, but are not limited to, coal mine safety (1), combustion measurement (2), petrochemical process analysis (3), and gas emission monitoring (4).

There are challenges, however, in maintaining analytical robustness of TDLAS methods for onsite application. The major common obstacles are spectral fringe (caused by the etalon effect of multiple re- flections from optical surfaces) and spectral interference (caused by background gas and spectra deformation due to system degradation). When these factors are combined in a complicated process analysis, they can cause a TDLAS analyzer to deviate from the original calibration.

Strategies to reduce the effects of spectral baseline structures include anti-reflection coatings, wedging or tilting the optical surfaces, dithering one surface and integrating the signal to average out its influence, and selecting a modulation frequency (5). Li introduced a discrete wavelet transform (DWT) method with optimized wavelet pairs to analyze spectra with different noise levels and baseline drift (6). Chemometric methods, such as the classical least squares (CLS) fitting method (7) and the partial least square (PLS) fitting method (8), have been commonly adopted in TDLAS to suppress spectral interferences.

When spectral interference or deformation becomes strong, it is hard to achieve satisfactory performance with linear regression algorithms. This changed with the introduction of machine learning algorithms such as artificial neural networks (ANN) (7), and support vector machines (SVM) (8) and extreme learning machine (ELM) models (9,10). ELM, a novel single-layer forward neuronetworking (SLFN) algorithm developed by Huang (11,12), aims to reach not only the smallest training error, but also the smallest norm of output weights. In addition, ELM offers better training speed and generalization ability than backprop (BP) neuronetworking and SVM (13).

ELM is capable of regression and classification (12,14), and has been used in micro-NIR, Fourier-transform infrared (FT-IR), and laser-induced breakdown spectroscopy (LIBS) (9,10). Application in TDLAS has not been carried out so far. Therefore, we introduce the ELM algorithm in a TDLAS process analyzer to improve its performance.

 is the number of the sample, L is the number of hidden layer nodes,

 is the input layer neuron number, and the output layer neuron number is 1.

The goal of ELM model training is to obtain the estimated

 by minimizing the difference between real value

The first step in spectral analysis is preprocessing, which involves multi-scan averaging, Savitzky–Golay smoothing, and optical power normalization.

An ELM model can be optimized through several factors. The activation function is critical in terms of model convergence speed and predication accuracy (12). Recent research showed that the stability and accuracy of an ELM model were further improved by optimization of

GA is useful for searching for the global optimized parameter and avoiding local optima, through many generations of selection, crossover, and mutation operation. GA is also ideal for

The purpose of ELM application is to enhance the robustness of the spectroscopic analyzer in process analysis. The accuracy of key measurements is expected to improve after spectra restoration with ELM.

As the basis, CLS is introduced to derive the concentration from spectra:

 = 1...n) is the regression coefficient which is used to derive the gas concentration. Relative error (RE) is used as model performance indicator:

 are the prediction and real values of the

 is the full range. In contrast to 3σ criterion, the

) measurement in petrochemical process analysis was chosen as an example. There were strong spectral interferences from coexisting background components. The spectral region from 1626.25 nm to 1626.70 nm was chosen for C

The analyzer’s micro controller (MCU) controls a laser module PCI-FPGA-1A(Port City Instruments) to drive the laser with scan and modulation functions. The tuning range of the distributed feedback (DFB) laser is around 0.45 nm, which covers two C

 absorption peaks at 1626.35 and 1626.53 nm. The laser temperature is stabilized by a TEC module WTC3293. The cascade integrator comb filter–based demodulation output DC and

The process of TDLAS analyzer gas concentration measurement is shown in Figure 1. The spectra generation process is illustrated in Figure 1a. The procedure of calibration model training and verification is illustrated in Figures 1b and 1c, where the impact on accuracy by laser frequency drift and spectral interference are demonstrated.

We will address two spectral analysis issues. The first is the gas concentration prediction accuracy caused by background and gas pressure variation during process measurement. The second is the inaccurate spectral shift calculation in the presence of strong spectral interference. With ELM, we aimed to accurately calculate both gas concentration and real spectra shift. Two experiments were designed correspondingly.

This experiment was to simulate the industrial process in a controlled scenario. Fifty mixing gas streams were generated with C

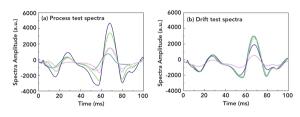

 up to 2000 ppm and the pressure was in 900 to 1100 mbar range. They were randomly varied within the range. Part of collected spectra are plotted in Figure 2a. Because of CH

 interference, accurate concentration cannot be obtained by direct counting of the C

Spectral drift causes an adverse impact on the accuracy. In the experiment, spectral peak shift was varied up to 16 counts over 1000 counts range by randomly shifting current up to ±0.2 mA without changing the range amplitude. The concentration of C

 was randomly set. Examples of collected spectra are shown in Figure 2b. For isolated spectral features, the spectral shift can be calculated by peak tracking of peak position, but it is unlikely to get correct spectral shift by tracking for this scenario shown in Figure 2b.

The 50 process test spectra are used to calculate the C

 concentration in dynamic backgrounds with ELM. First, we evaluate the effect of activation functions, with subgroups 1 to 4 as a training set and subgroup 5 as a verification set. The RE for the different activation functions, sigmoid, sin, hardlim, tribas, radbas and rectified linear unit (ReLU), are calculated. The

 for ReLU is 0.65%, which is substantially better than others, because it has linear expression and broad linear response input range. Therefore, ReLU is chosen for future ELM modeling.

 are identified through GA global searching,

Finally, the impact of training set and verification selection on model performance is evaluated through a fivefold cross-validation (CV). The model was trained by the four subgroups, and verified by one remaining subgroup. The subgroups are rotated in training and verification selection. The

 of each subgroup with the corresponding ELM model is listed in Table I. The ELM model trained by subgroup 2–5 has the lowest RE of 0.27%.

The concentration error with the final optimized ELM modes for 50 spectra is plotted in Figure 3 (circle). The training set errors are closer to zero, because of deep suppression by the nonlinear activation function. The errors of 10 verification set spectra are larger, which are accountable for ELM model performance.

 concentration is obtained by CLS equation 4. The RE is listed in Table I, with max value of 6.30%. Errors for each sample are plotted in Figure 3 (triangle). The error is reduced more by ELM than by CLS.

The real spectral shift in the dynamic process is the key to obtaining correct concentration through the calibration model. With real shift, spectra can be restored to calibration status with high fidelity. The ELM algorithm is adopted for this purpose. During model training, spectral shift is treated as the output in the model. The

 is defined as the current prediction error divided by the current shift range (

). The peak shift RE for subgroups is listed in Table II. The best ELM model, verified by subgroup 3, has an

 of 4%, equivalent to a maximum spectral shift error of 0.64 counts. The right C

 peak is selected for peak tracking with the RE listed in Table II. Due to concentration variation and CH

 interference, its accuracy is much less than ELM. The max error is 16 counts (-100%).

Concentration Error After Backshift Correction

After the shift calculation, the spectra are backshifted to match with the calibration. The C

 concentration prediction error with and without backshift correction is calculated based on corresponding calibration model.

 concentration for each spectrum is plotted against current shift in Figure 4. Before correction, the error pattern demonstrates a V shape. As spectra shift more, the error increases more. After ELM correction, the error pattern demonstrates a flat belt shape, and the widths are greatly shrunk. The error is improved from 6.92% to 1.50% (Figure 4a). For peak tracking and CLS method, the error has no obvious improvement (Figure 4b), due to inaccurate peak shift calculation.

 TDLAS analysis through two experiments. In the process test, RE of C

 concentration is obtained at 0.27% for the optimized ELM model. For the traditional CLS method, it is 6.30%. In the spectral shift test, the spectral shift prediction errors are less than 1 count for ELM, and less than 16 counts for peak tracking. The concentration relative error was reduced from 6.92% to 1.50% after ELM backshift correction. For the peak tracking and CLS methods, however, the error remains in the 20% region. ELM has demonstrated a dramatic robustness enhancement in trace C

 measurement. It can be extended to more complicated nonlinear spectral deformation scenarios.

This work is supported by Shandong Provincial Key RD projects (No. 2019GGX104103, 2019GHY112084).

(1) Y. Wei, J. Chang, J. Lian, and T. Liu,

(2) D. Shi, W. Song, J. Ye, B. Tao, and Y. Wang,

(3) Y. Wang, Y. Wei, J. Chang, T. Zhang, T. Liu, T. Sun, and K.T.V Grattan,

(4) Z.G. Yuan, X.T. Yang, W.Q. Xie, and X.M. Li,

(7) H. Li, Y. Zhu, F. Dong, X. Li, and L. Zhang,

(8) Y. Wang, Y. Wei, T. Liu, T. Sun, and K.T. Grattan,

(9) B.T. Le, D. Xiao, Y.C. Mao, L. Song, D.K. He, and S.J. Liu,

(11) G.B. Huang, Q.Y. Zhu, and C.K. Siew,

(14) C. Malegori, E.J.N. Marques, S.T. de Freitas, M.F. Pimentel, C. Pasquini, and E. Casiraghi,

(15) X.X. Yin, S. Hadjiloucas, J. He, Y. Zhang, Y. Wang, and D. Zhang,

(16) K. Javed, R. Gouriveau, and N. Zerhouni,
